340 Fieldbus control with fieldbus adapter
The drive can be set to receive all of its control information through the fieldbus
interface, or the control can be distributed between the fieldbus interface and other
available sources, eg, digital and analog inputs.
The drive can communicate to a control system through a fieldbus adapter using, for
example, the following serial communication protocols. Other protocols may be
available; contact your local ABB representative.
• PROFIBUS-DP (FPBA-01 adapter)
• CANopen (FCAN-01 adapter)
• DeviceNet™ (FDNA-01 adapter)
• Ethernet (FENA-01 adapter)
• Modbus RTU (FMBA-01 adapter. See chapter Fieldbus control with embedded
fieldbus on page 313.)
The drive detects automatically which fieldbus adapter is connected to the drive
terminal X3 (with the exception of FMBA-01). The DCU profile is always used in
communication between the drive and the fieldbus adapter (see section Fieldbus
control interface on page 344). The communication profile on the fieldbus network
depends on the type and settings of the connected adapter.
The default profile settings are protocol-dependent (for example, vendor-specific
profile (ABB drives) for PROFIBUS and industry-standard drive profile (AC/DC Drive)
for DeviceNet).

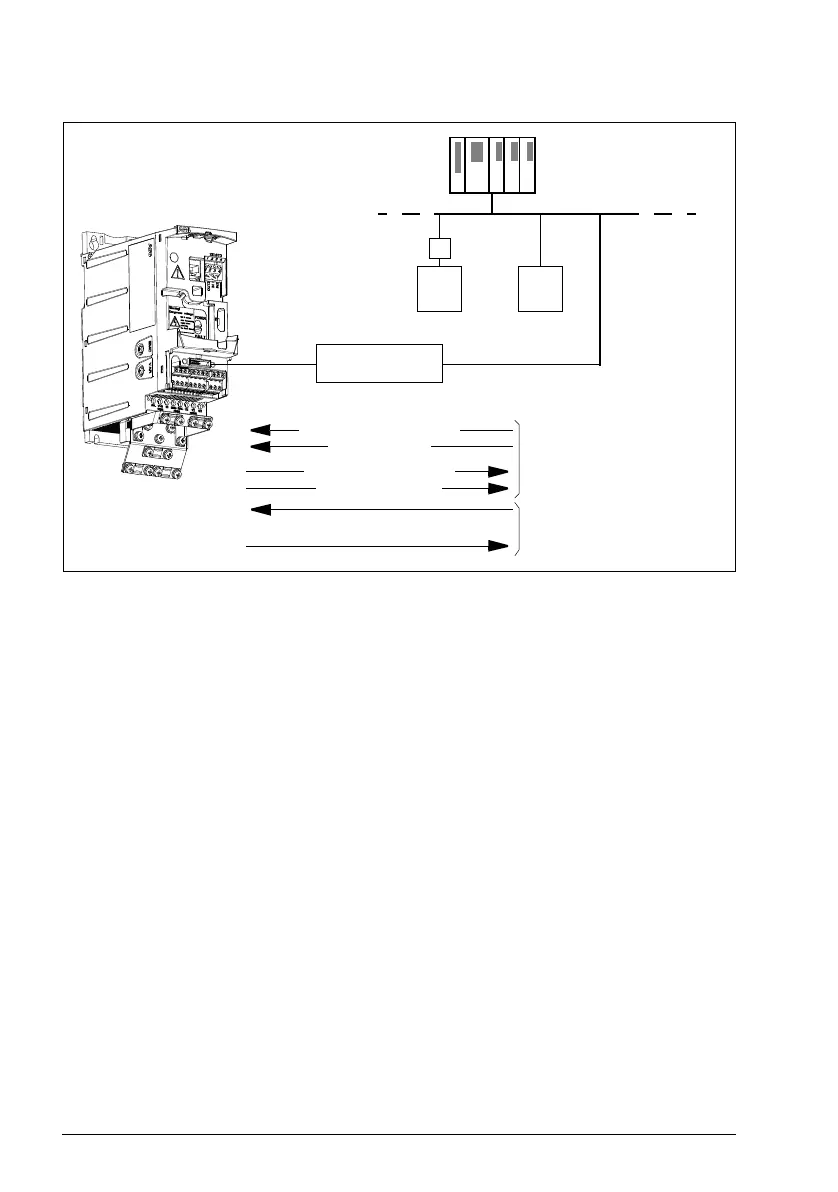

Fieldbus
controller
Fieldbus
Fieldbus
adapter
X3
Drive
Process I/O (cyclic)
Service messages (acyclic)
Data flow
Control word (CW)
References
Status word (SW)
Actual values
Parameter R/W
requests/responses
Other
devices
