3.15.4 GOOSERCV_INT8 function block
3.15.4.1 Function block

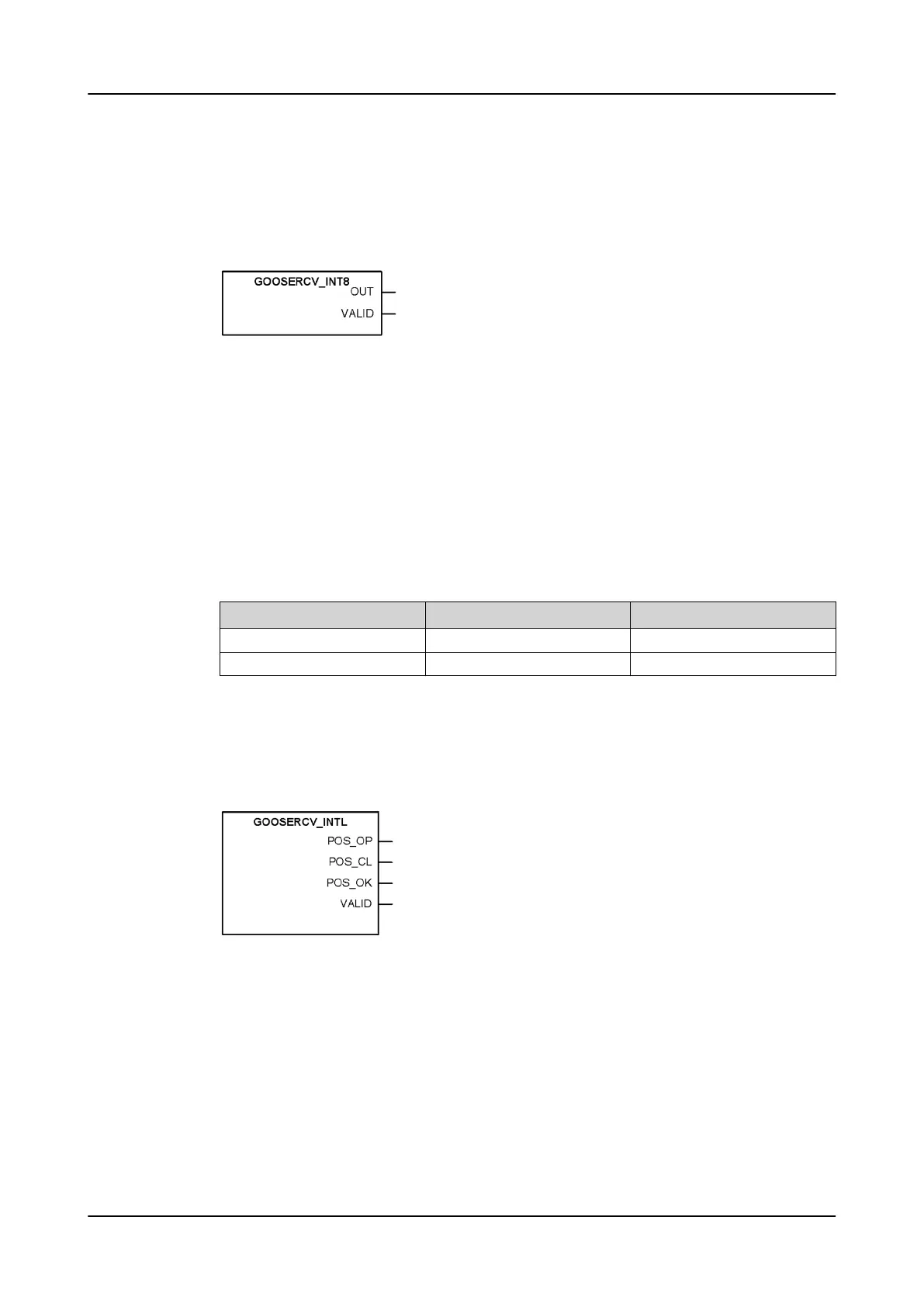

Figure 59: Function block
3.15.4.2 Functionality
The GOOSERCV_INT8 function is used to connect the GOOSE 8 bit integer inputs to
the application.
3.15.4.3 Signals
Table 74: GOOSERCV_INT8 Output signals
Name Type Description
OUT INT8 Output signal
VALID BOOLEAN Output signal
3.15.5 GOOSERCV_INTL function block
3.15.5.1 Function block
Figure 60: Function block
3.15.5.2 Functionality
The GOOSERCV_INTL function is used to connect the GOOSE double binary input to
the application and extracting single binary position signals from the double binary
position signal.
The OP output signal indicates that the position is open. Default value (0) is used if
VALID output indicates invalid status.
