ABB Relion 620 Series - Pulse Timer Function Block PTGAPC

Table 152: TPMGAPC Output signals
Name Type Description
OUT1 BOOLEAN Output 1 status
OUT2 BOOLEAN Output 2 status
Settings
Table 153: TPMGAPC Non group settings (Basic)
Parameter Values (Range) Unit Step Default Description
Pulse time 0...300 min 1 0 Minimum
pulse time
3.17.3 Pulse timer function block PTGAPC
3.17.3.1 Function block

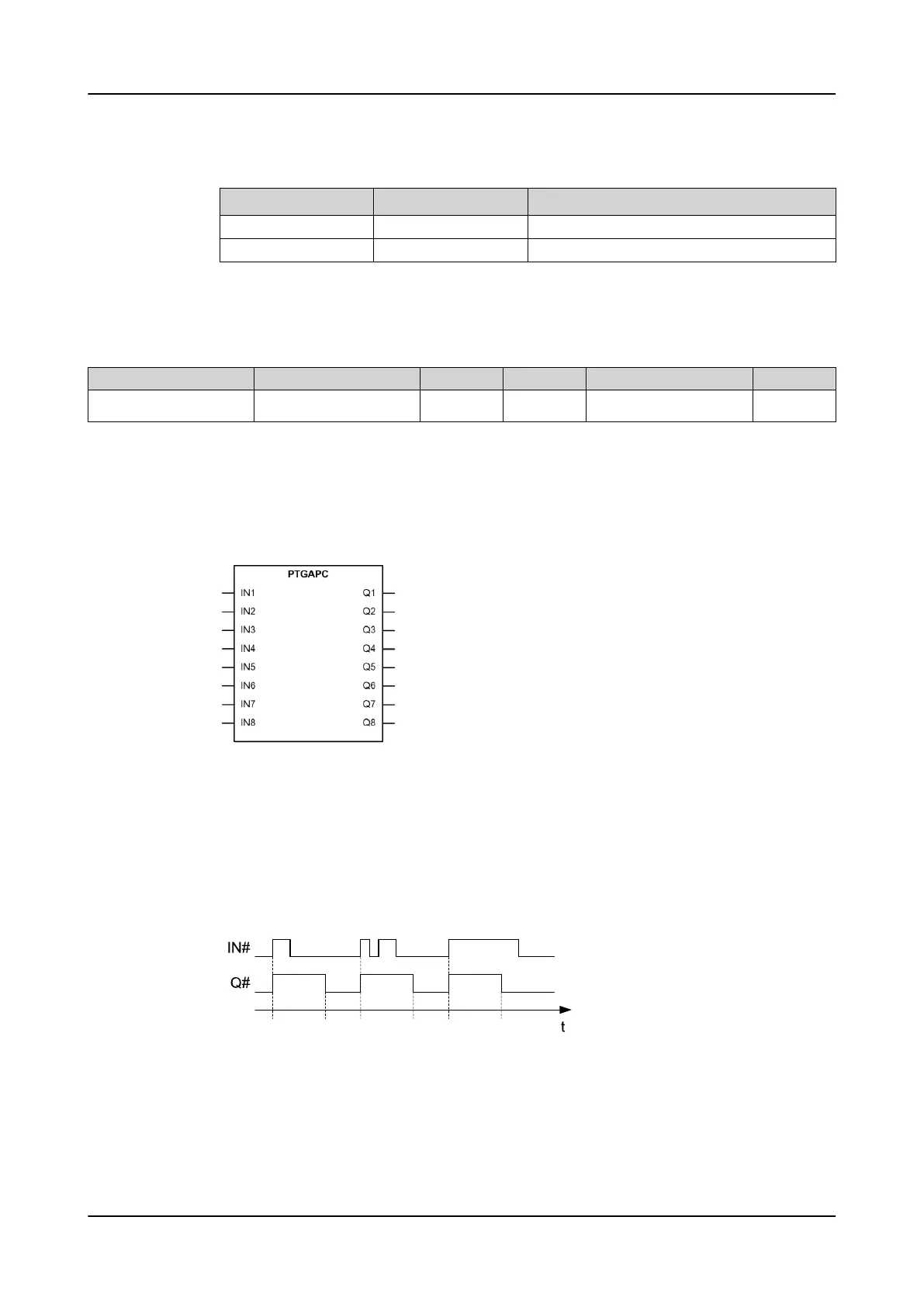

Figure 92: Function block
3.17.3.2 Functionality
The pulse timer function PTGAPC contains eight independent timers. The function
has a settable pulse length. Once the input is activated, the output is set for a
specific duration using the Pulse delay time setting.
t0 t0+dt t1 t1+dt t2 t2+dt
dt = Pulse delay time
Figure 93: Timer operation
1MRS757644 H
Basic functions
620 series
Technical Manual
169
