Abbott ARCHITECT RHS - Power Distribution

MODULE 4: POWER AND CIRCUIT BOARDS
ARCHITECT
®
RSH Service Training Guide 4-5
201532-102 FOR INTERNAL USE ONLY

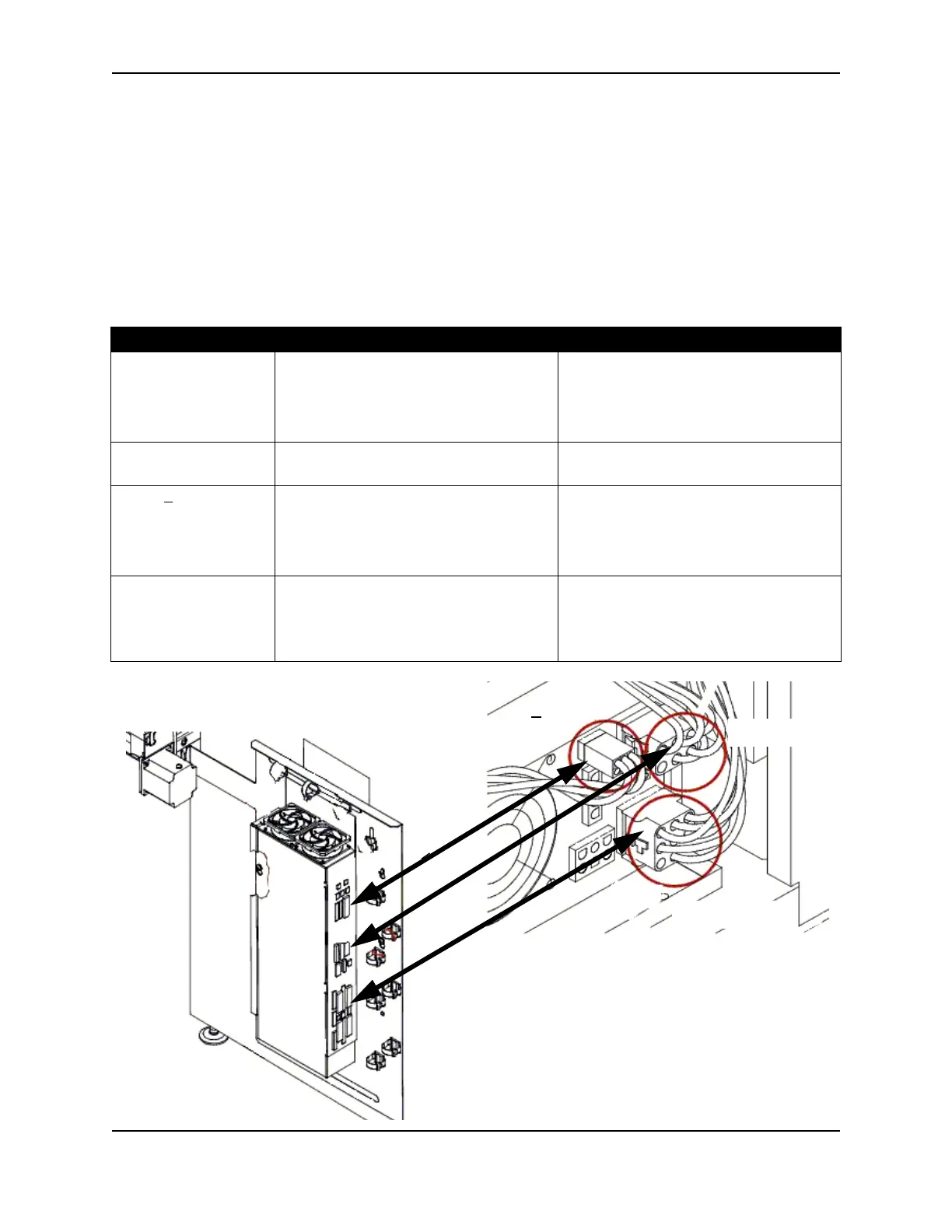

POWER DISTRIBUTION
Power distribution to the RSH is dependent on system configuration.
ARCHITECT
®
c8000
®
System
On the c8000 System the Stepper Motor Driver/Sample Handler (SMD/SH) Power Supply provides power
to BOTH the c8000 System and the Retest Sample Handler (RSH) Card Cage. The RSH Card Cage is a
separate card cage from the main c8000 System. It is attached to the c8000 System right side during
system installation. The RSH Card Cage receives and distributes the following voltages:
Received Voltage Supplied Voltage Fuses
+5VDC • Sensor Interface Board (SIB)
• Sample Handler Controller/CPU Board
• Indexer
• Motor Driver Board
• F1 (2A) in middle card cage area (c8000
System only)
+12VDC • Card Cage Fans (c8000 System only) • F2 (10A) in upper card cage area (c8000
System only)
+
12VDC • Sensor Interface Board
• Sample Handler Controller/CPU Board
• Indexer
• Motor Driver Board
N/A
+36VDC • Motor Driver Board:
- Carrier Transport X axis motor
- Carrier Transport Theta motor
- Carrier Transport Z motor
N/A
J4 (+12VDC)
J1 (+36VDC)
J6 (+5VDC)
+
3
6
VD
C
c8000
®
SMD/SH Power Supply
c8000 System add on
Card Cage
+
5
V
D
C
+
1
2
VD
C
