MODULE 2: BASIC OPERATION
2-12 ARCHITECT
®
RSH Service Training Guide
FOR INTERNAL USE ONLY 201532-102
RSH COMPONENTS
The RSH contains several components for sample placement, detection, positive identification and
transport. A list of these components include:
• Priority and Routine Bays
- Cover and Interlock Sensors
- Indicator Status Lights
• Bar Code Reader
• Carrier Transport Assembly
- Carrier Transport Carrier Bearing
- Carrier Transport Pulley Assembly
- Carrier Transport Motor Drive
• Carrier Positioner Assembly
•RSH Keypad

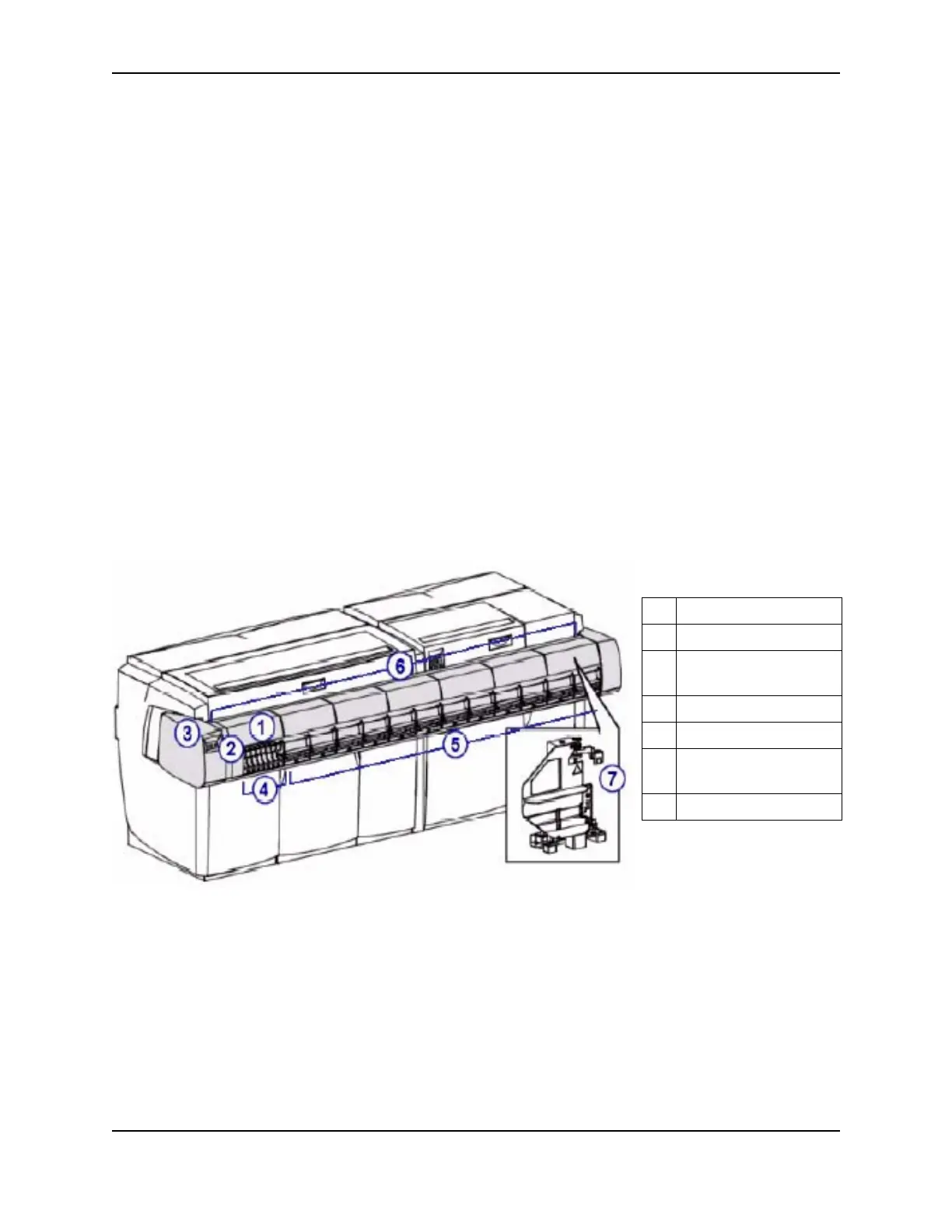

1RSH Cover
2RSH Keypad
3 RSH Bar Code Reader
(inside instrument)
4 Priority Bay
5 Routine Bays
6 Carrier Positioner
(inside instrument)
7 Carrier Transport
