MODULE 2: BASIC OPERATION
ARCHITECT
®
RSH Service Training Guide 2-21
201532-102 FOR INTERNAL USE ONLY

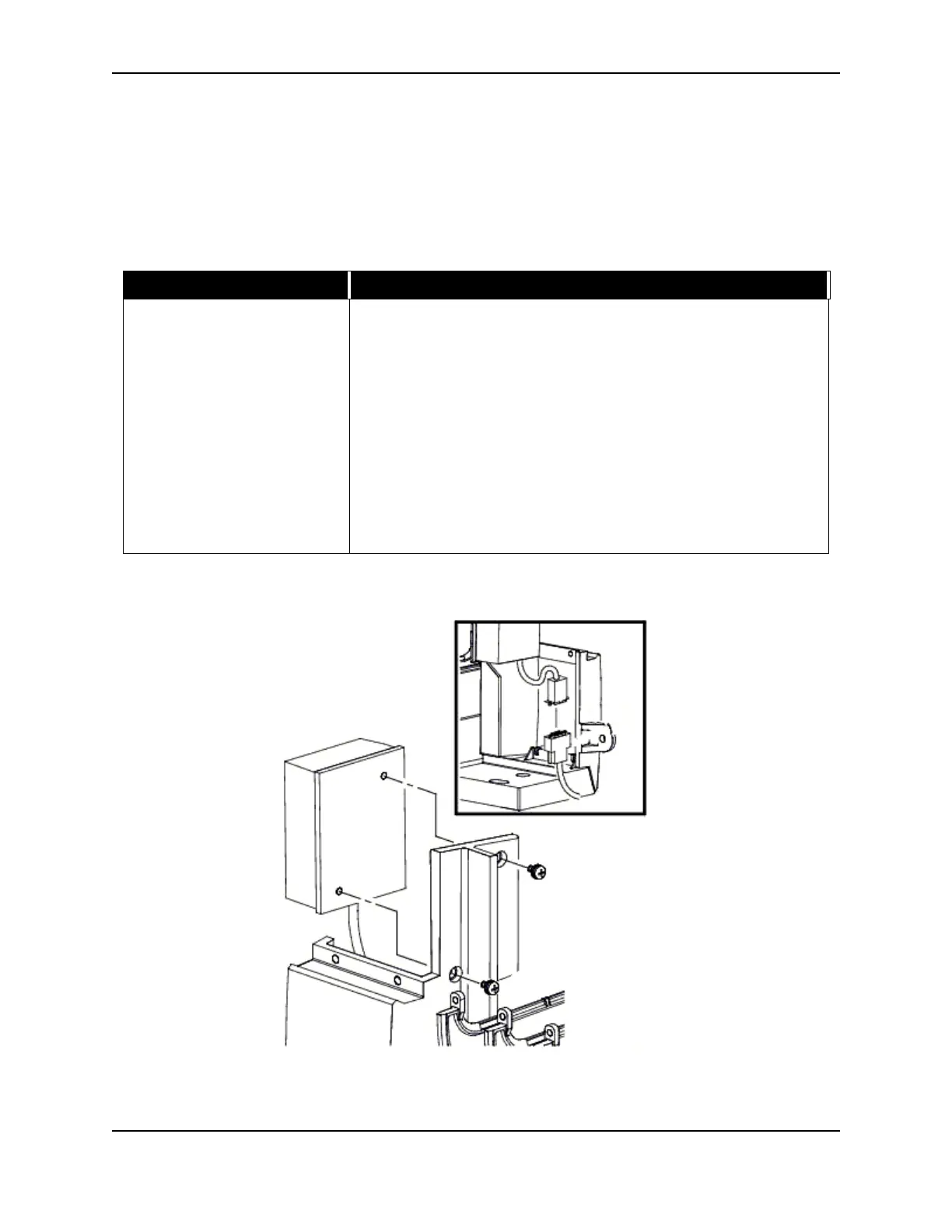

Bar Code Reader
The RSH Bar Code Reader reads the Carrier ID Bar Code and the sample tube bar codes, but does not read
the Carrier Position Bar Codes. The reader is mounted on a bracket and points into the instrument.
Carriers are picked up by Carrier Transport and passed in front of the RSH Bar Code Reader. After bar
code scanning is complete, Carriers are always returned to the section/bay that they originated.
Component Description and Function
Sample Bar Code Reader • Replaceable
• Used to identify Carrier ID Bar Codes, and sample tube bar code labels
• Mounted on a Priority Bay bracket
• Symbologies read by the bar code reader:
-Code 39
- Codabar
- Interleaved 2 of 5
- Code 128 (subsets A, B, and C)
• Can be adjusted to decrease sensitivity in empty positions
• Alignment Bar Code Tool
• 5VDC from SIB
Bar Code Reader
