MODULE 4: POWER AND CIRCUIT BOARDS
ARCHITECT
®
RSH Service Training Guide 4-11
201532-102 FOR INTERNAL USE ONLY
The back of the i2000
SR
®
Card Cage, as with the c8000
®

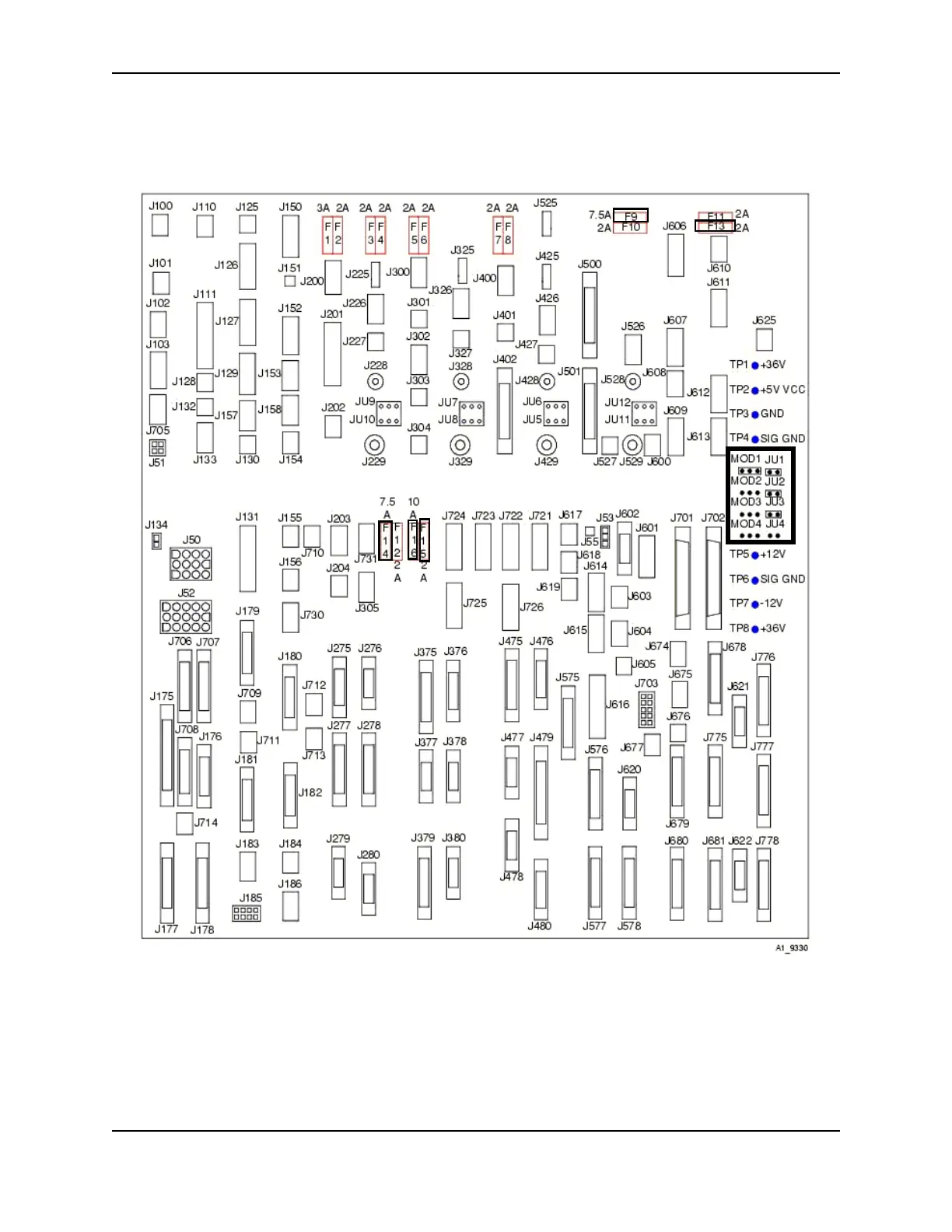

RSH Card Cage, contains jumpers, fuses and test
points. Jumpers at JU1 and JU2 indicate the system is configured for the RSH.
ARCHITECT i2000
SR
®
Card Cage Backplane
