Priority Bay
The left most section of load/unload points on the RSH is referred to as the Priority Bay. Each location in
the Priority Bay that a Carrier can be loaded into is referred to as a section. All system configurations have
one Priority Bay. The Priority Bay has seven sections for loading carriers.
Component Description and Function
Section and Section partition • Seven sections (replaceable)
• Load one Carrier per section
• Slots that interface with the Carrier Section Alignment Sensor
Carrier/Tray Sensor • Replaceable
• Detects the presence of a Carrier
Priority Indicator Lights and Sensor Board
(PLSB)
• Provide status information on section and sample
• One board for all seven sections
• LEDs are replaceable
• 5VDC from SIB (fuse F9)
• Connects to UDB, LED, Carrier/Tray Sensors
Connector between PLSB and UDB

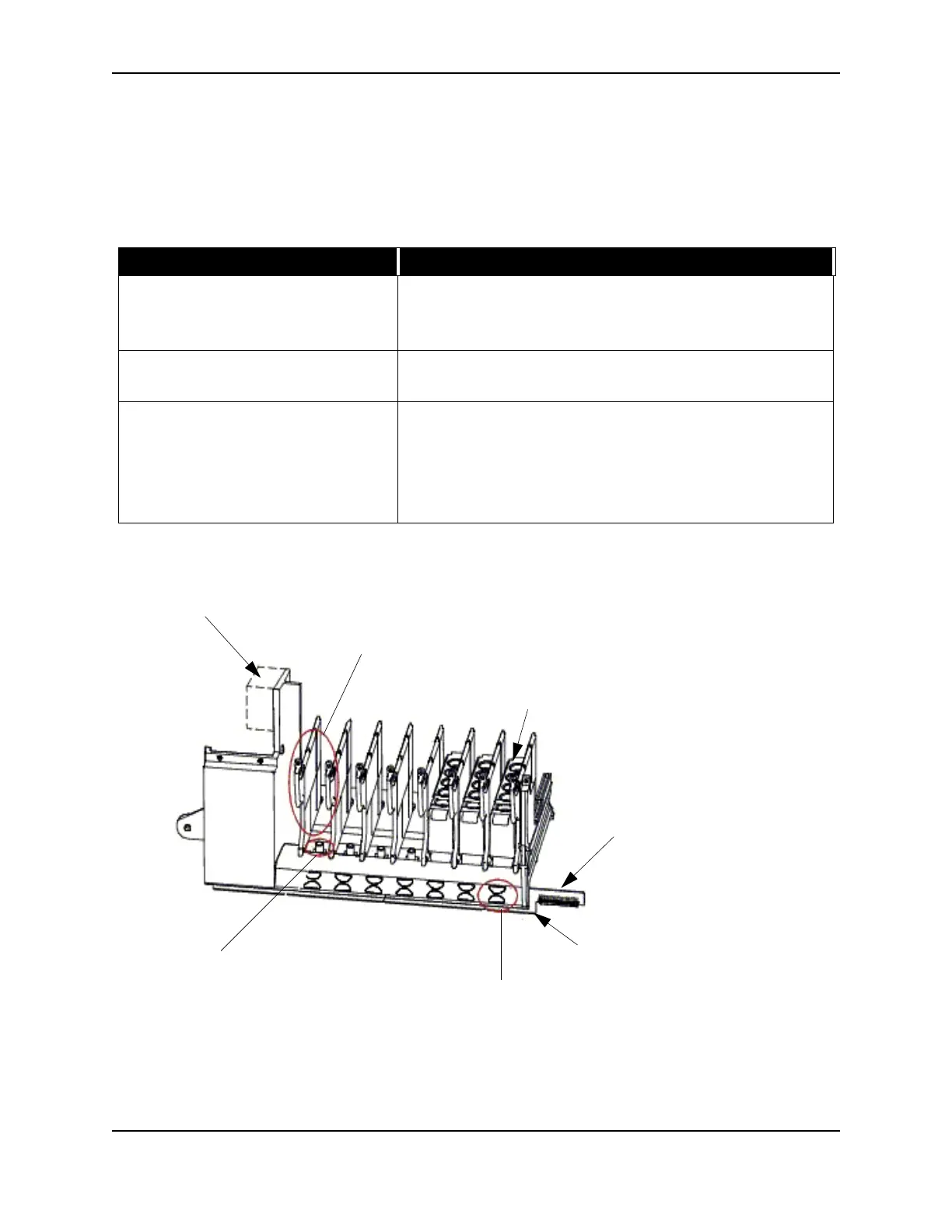

Priority Bay Section
Carrier
Priority Status indicator light
Carrier/Tray Sensor
RSH Bar Code Reader
PLSB Board
Priority Bay
