MODULE 3: ROBOTICS
3-8 ARCHITECT
®
RSH Service Training Guide
FOR INTERNAL USE ONLY 201532-102

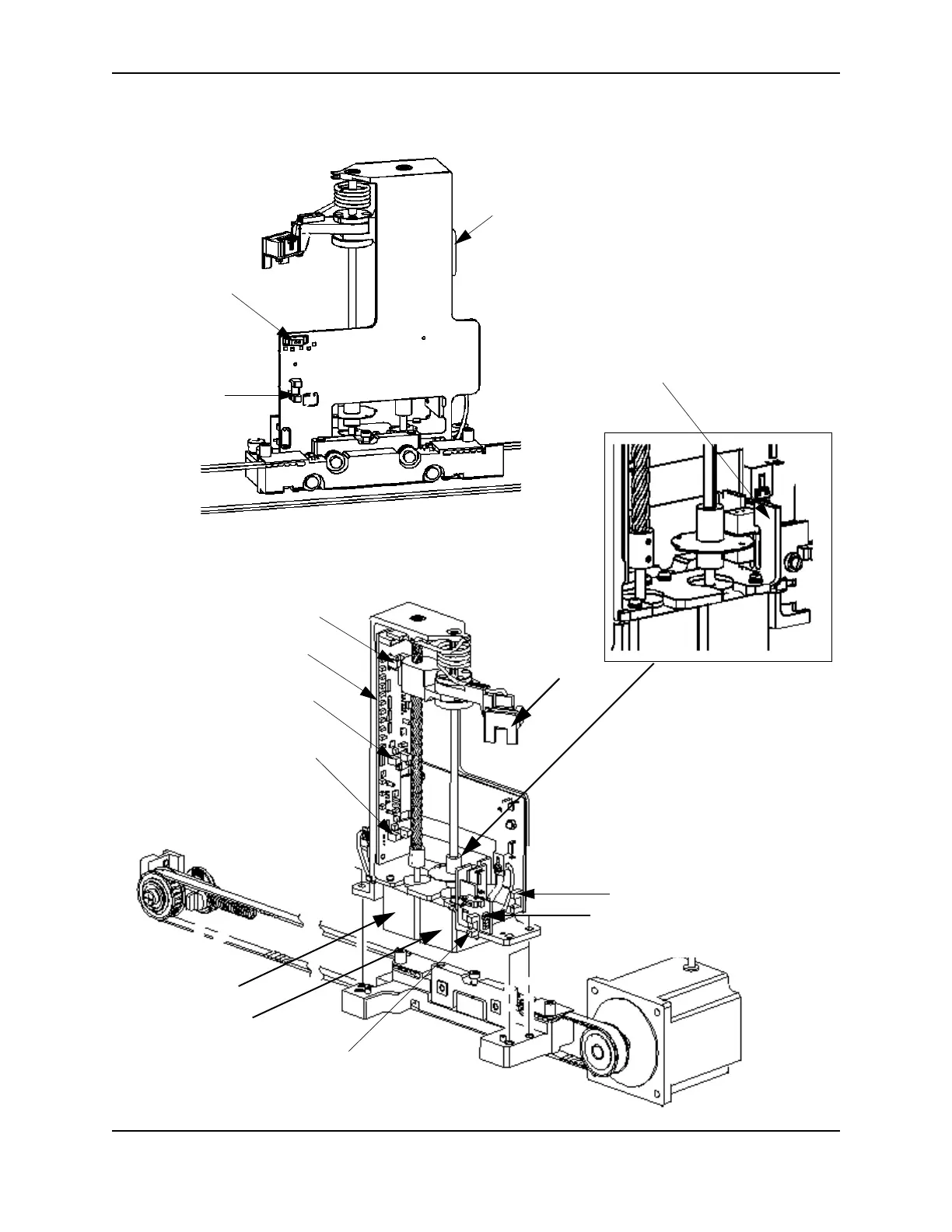

Front View
Rail Guide
X Home Sensor
Section Align
Sensor
Z align Sensor
(lower)
Z align Sensor
(middle)
Z Home Sensor
Carrier Transport Flex Board
Detect Sensor
Z Motor
Theta Motor
Back View
Carrier Positioner
Carrier Positioner
J1
Connector
Theta Home and Theta Align Sensors
Carrier Detect Sensor
Align Sensor
Section Carrier
