CARRIER POSITIONER ASSEMBLY
The Carrier Positioner Assembly moves Sample Carriers into position for aspiration by Processing Module
Sample Pipettors. One Carrier Positioner is provided for each Processing Module.
• A standalone c8000
®
System or i2000
SR
®
System has one Carrier Positioner
• a ci8200
®
System has two Carrier Positioners
Each carrier positioner consists of:
• Carrier Positioner Drive Assembly
- Motor, Lead Screw, Carrier Positioner Board, and Encoder Sensor
• Carrier Positioner Carriage
- Glass filled plastic assembly with four carrier pockets
- encoder track on underside
- teflon foot on left end
The Carrier Positioner Carriage sits on top of the drive assembly and has an encoder track that is used with
the encoder sensor. The encoder sensor detects the position of the Carrier Positioner using the encoder
track on the Carrier Positioner Carriage.

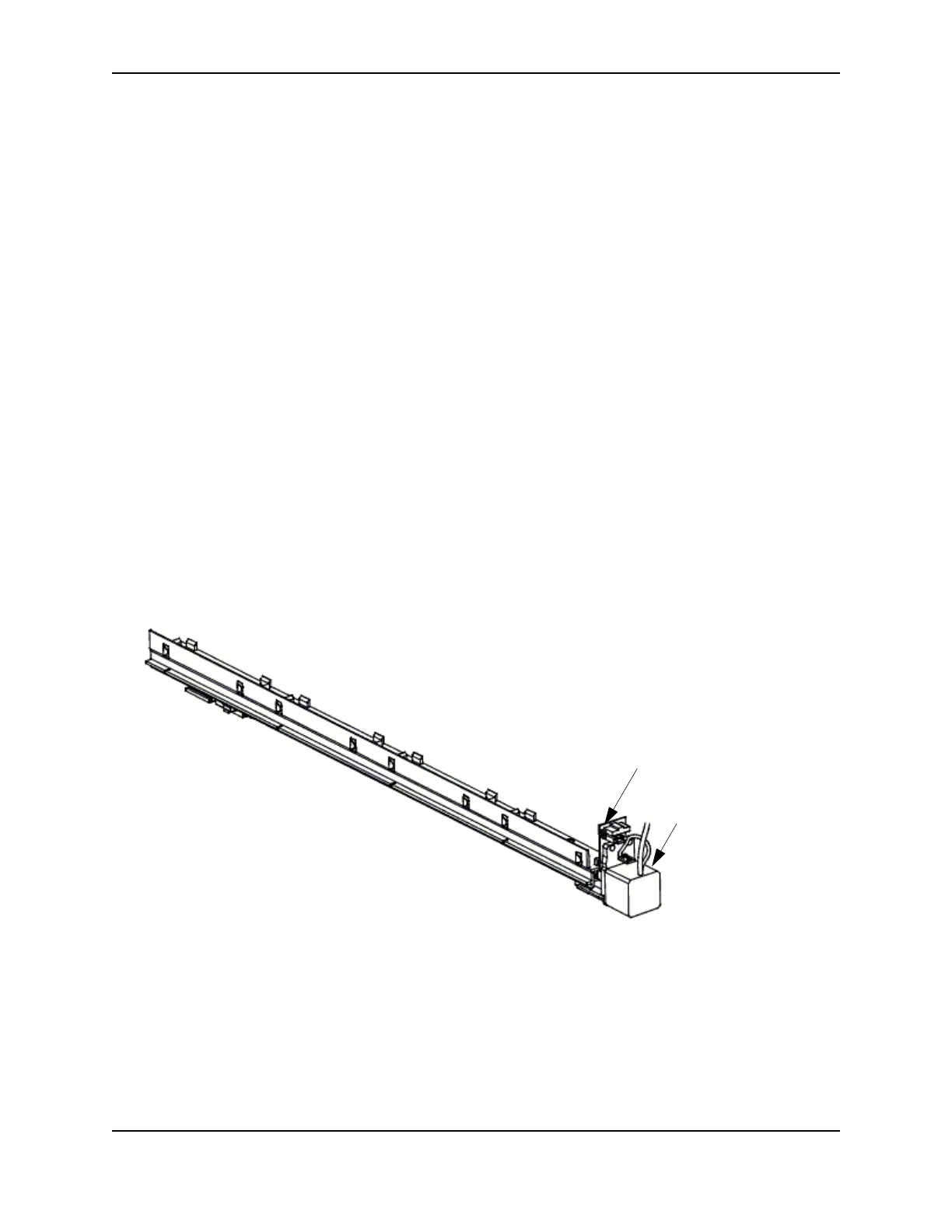

Carrier Positioner Assembly
Carrier Positioner Motor
1
2
3
4
Carrier Positioner Board
