5-15 Service and Maintenance
ODD Module Removal
Prerequisite:
Battery Pack Removal on page 5-7
1. Remove the screw securing the ODD module to the lower case.

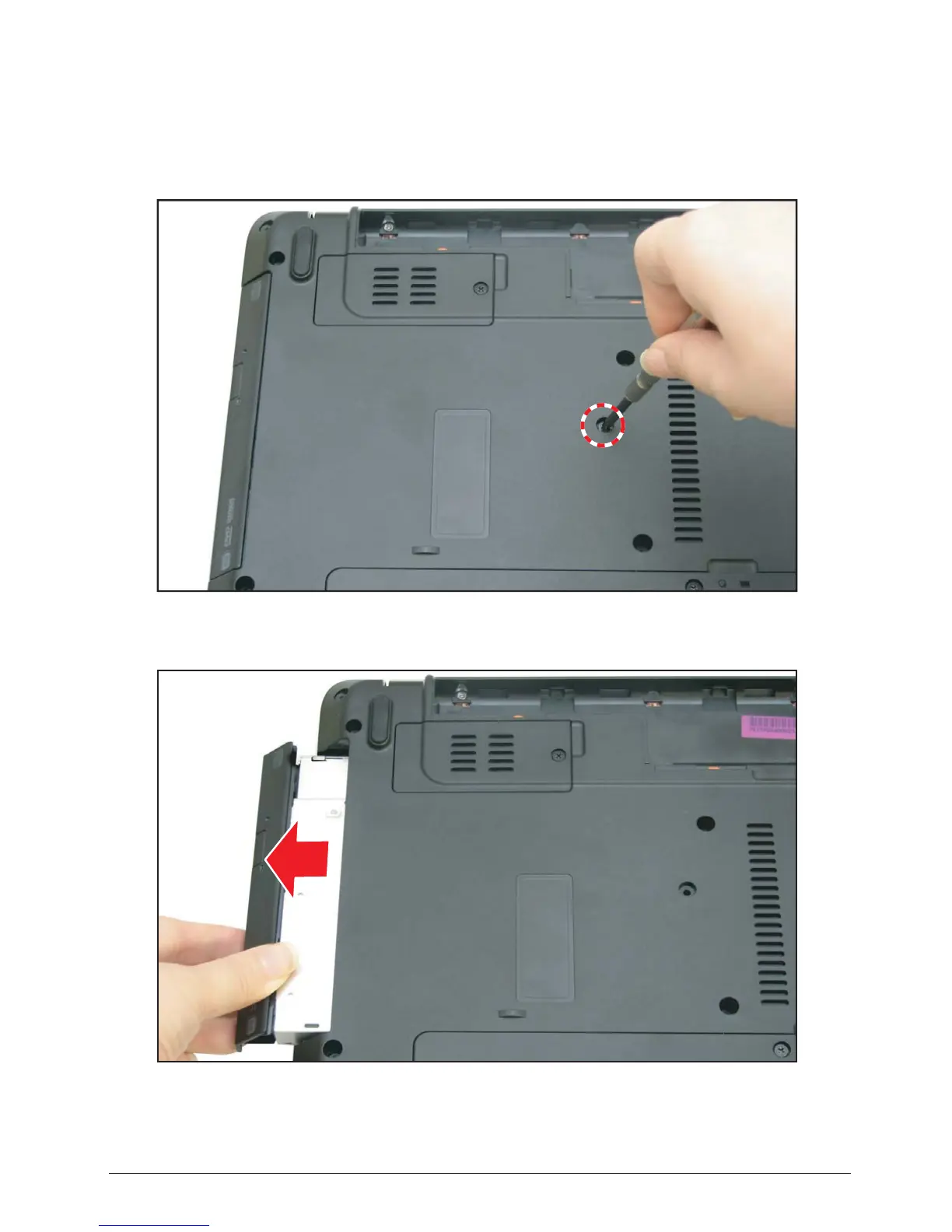

Figure 5:13. Removing the ODD Module Screw
2. Pull to remove the ODD module out from the slot.
Figure 5:14. Removing the ODD Module
