5-43 Service and Maintenance
Mainboard Removal
Prerequisite
HDD Module Removal on page 5-23
DIMM Module Removal on page 5-21
WLAN Module Removal on page 5-26
Upper Case Removal on page 5-34
1. Locate the WLAN antenna cables (see Figure 5:10, page 5-12).
2. Disconnect the main (black) and the auxiliary (white) antenna cable connectors and remove
from the guides of the lower case.

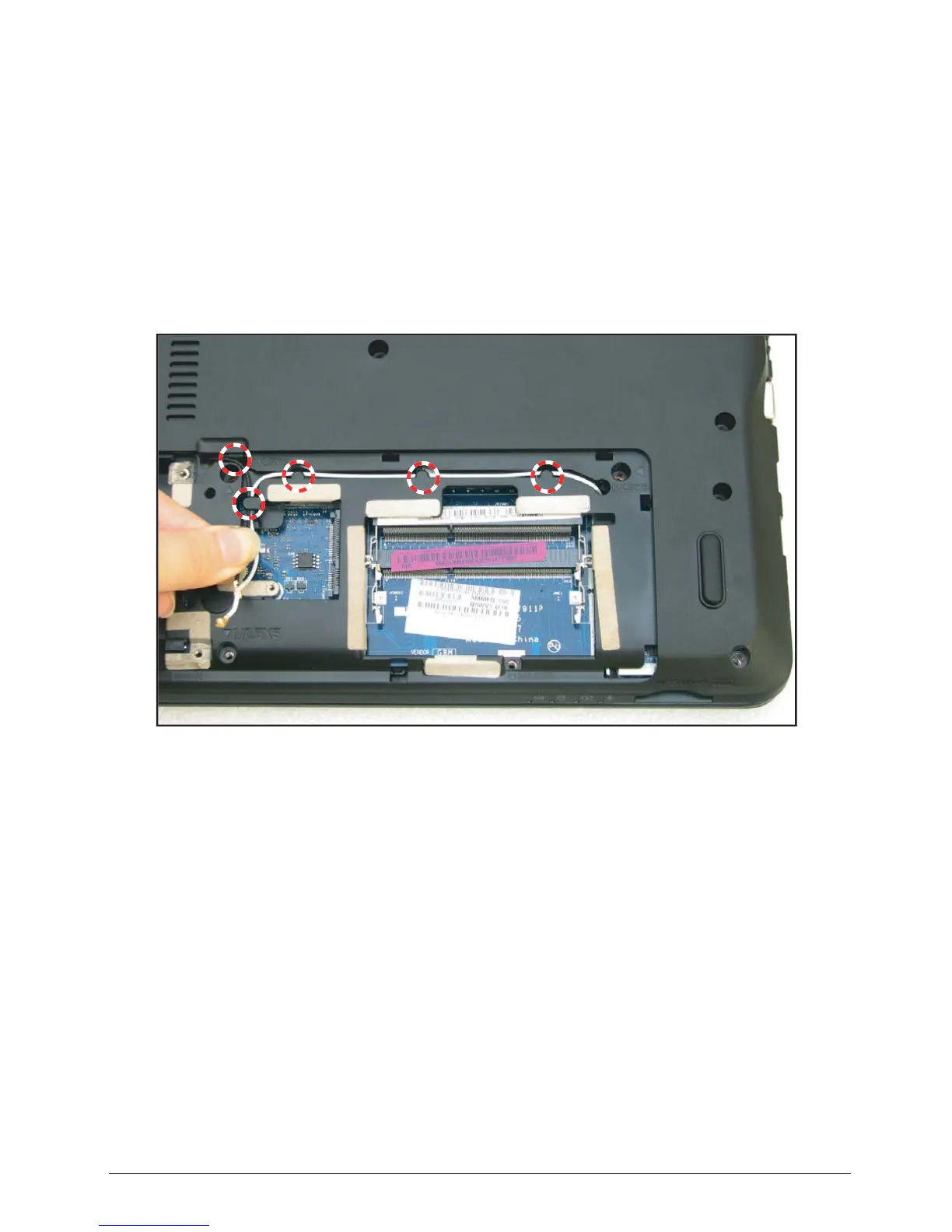

Figure 5:59. Removing the Antenna Cables
