Service and Maintenance 5-34
Upper Case Removal
Prerequisite:
Base Door Removal on page 5-11
Keyboard Removal on page 5-30

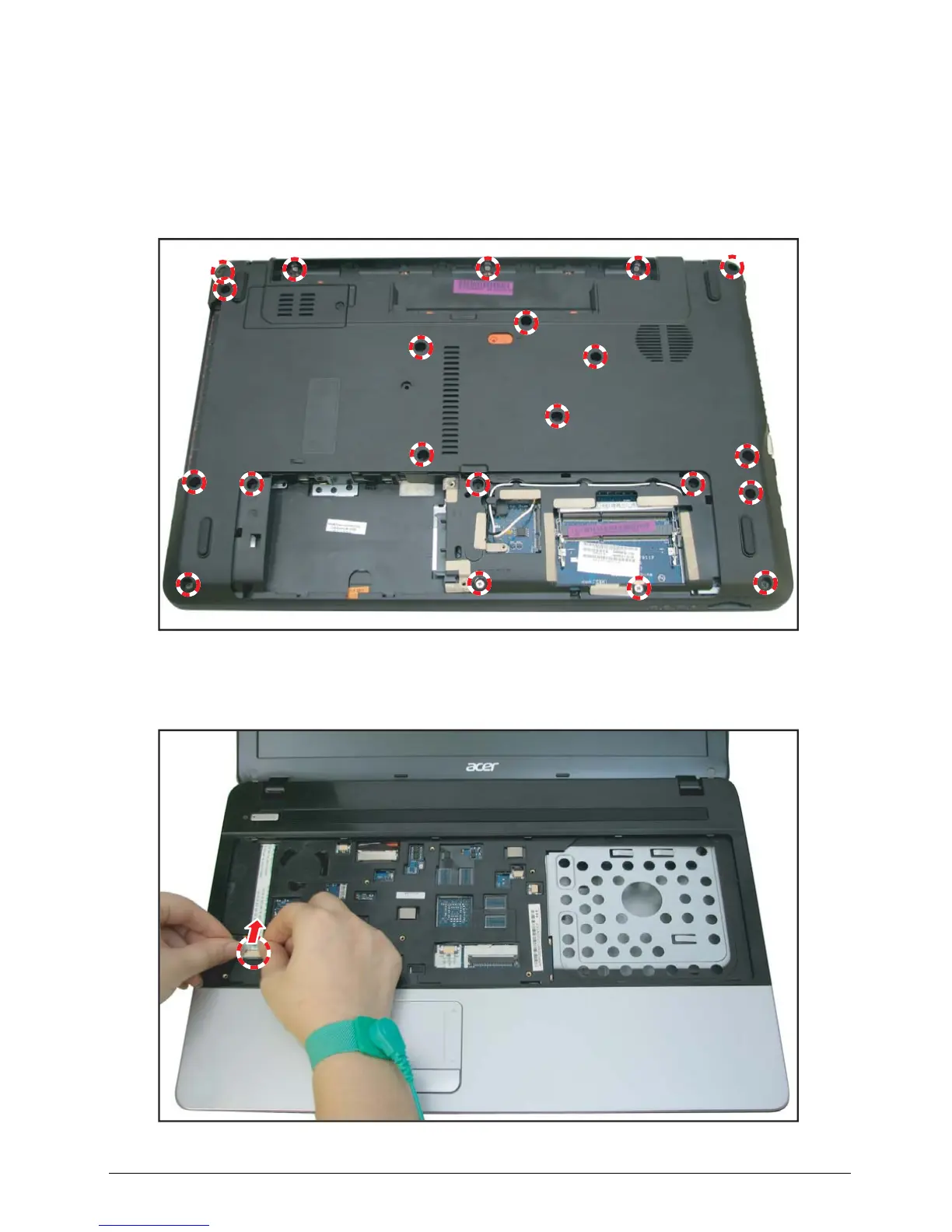

1. Remove the 21 screws securing the upper and lower case.
Figure 5:44. Removing the Lower Case Screws
2. Push the clips of the mainboard connector to disconnect the power board cable connector.
Figure 5:45. Disconnecting the Power Board Cable
