Service and Maintenance 5-60
Speaker Removal
Prerequisite:
Upper Case Removal on page 5-34
1. Disconnect the left speaker cable connector from the mainboard connector.

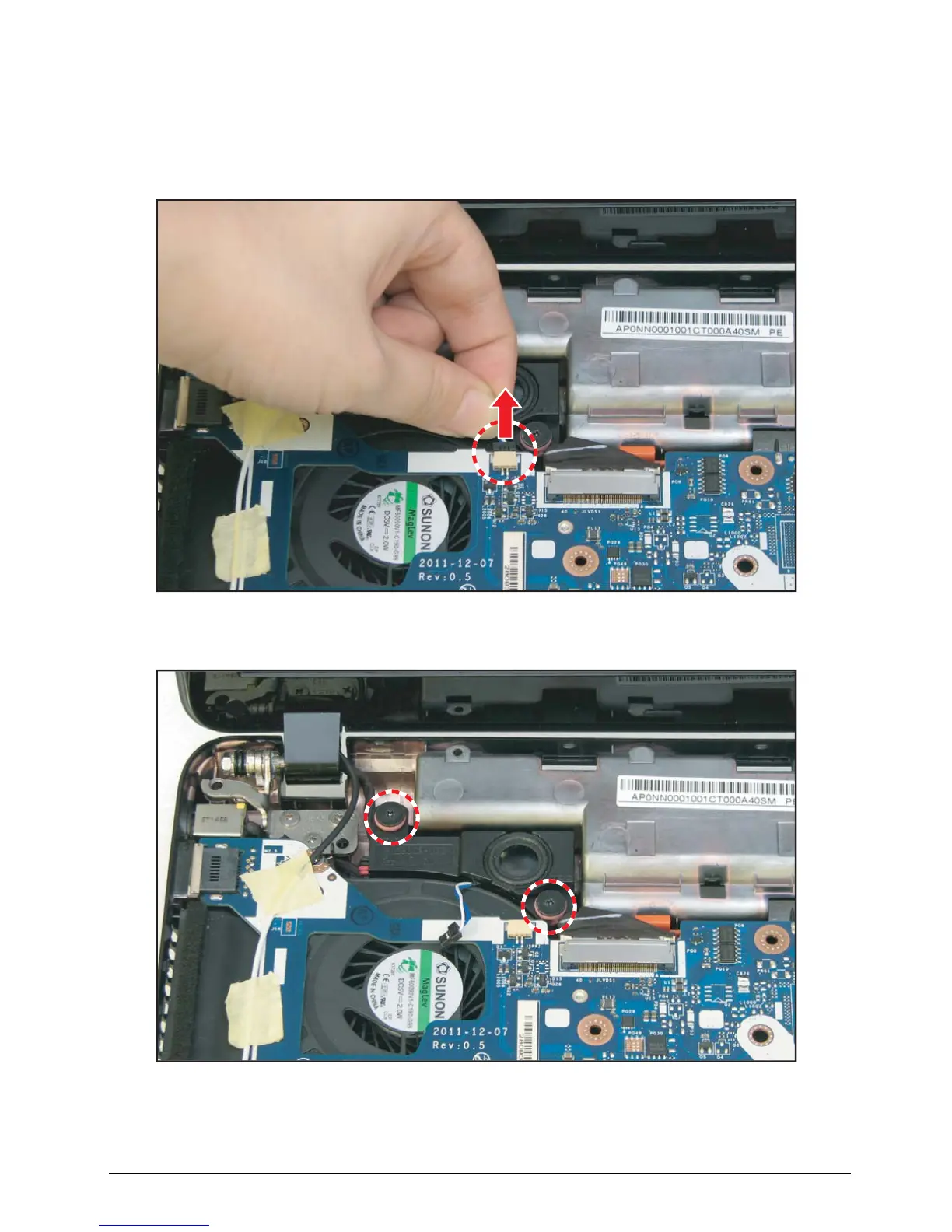

Figure 5:85. Removing the Left Speaker Cable
2. Remove the two (2) screws securing the left speaker.
Figure 5:86. Removing the Left Speaker Screws
To Next Page
