Jumper and Connector Locations 3-4

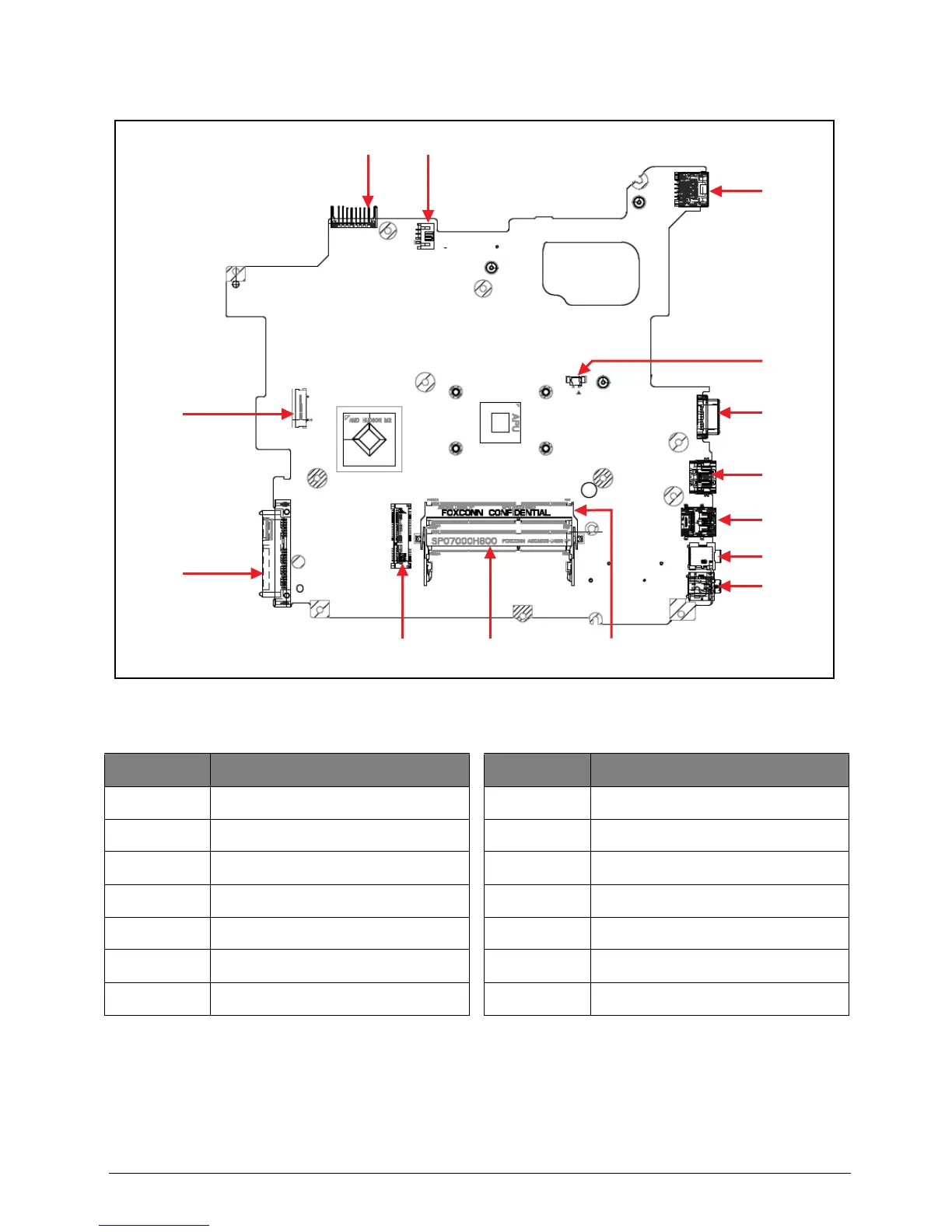

Mainboard Bottom View
Figure 3:2. Mainboard Bottom
Table 3:2. Mainboard Bottom Jumper and Connectors
Item Description Item Description
PJP1 AC-IN Jack JMIC1 MIC-in Connector
PJP2 Battery Connector JHP1 Headphone/SPDIF Connector
JRJ45 LAN Connector JDIMM1 RAM Connector
JFAN1 FAN Connector JDIMM2 RAM Connector
JCRT1 CRT Connector JMINI1 WLAN Connector
JHDMI1 HDMI Connector JHDD1 HDD Connector
JUSB1 USB Connector JODD1 ODD Connector
