Service and Maintenance 5-66
USB Module Removal
Prerequisite
Upper Case Removal on page 5-34
1. Locate the USB module (see Figure 5:50, page 5-37).
2. Push the connector clips outwards to release the USB module cable connector.

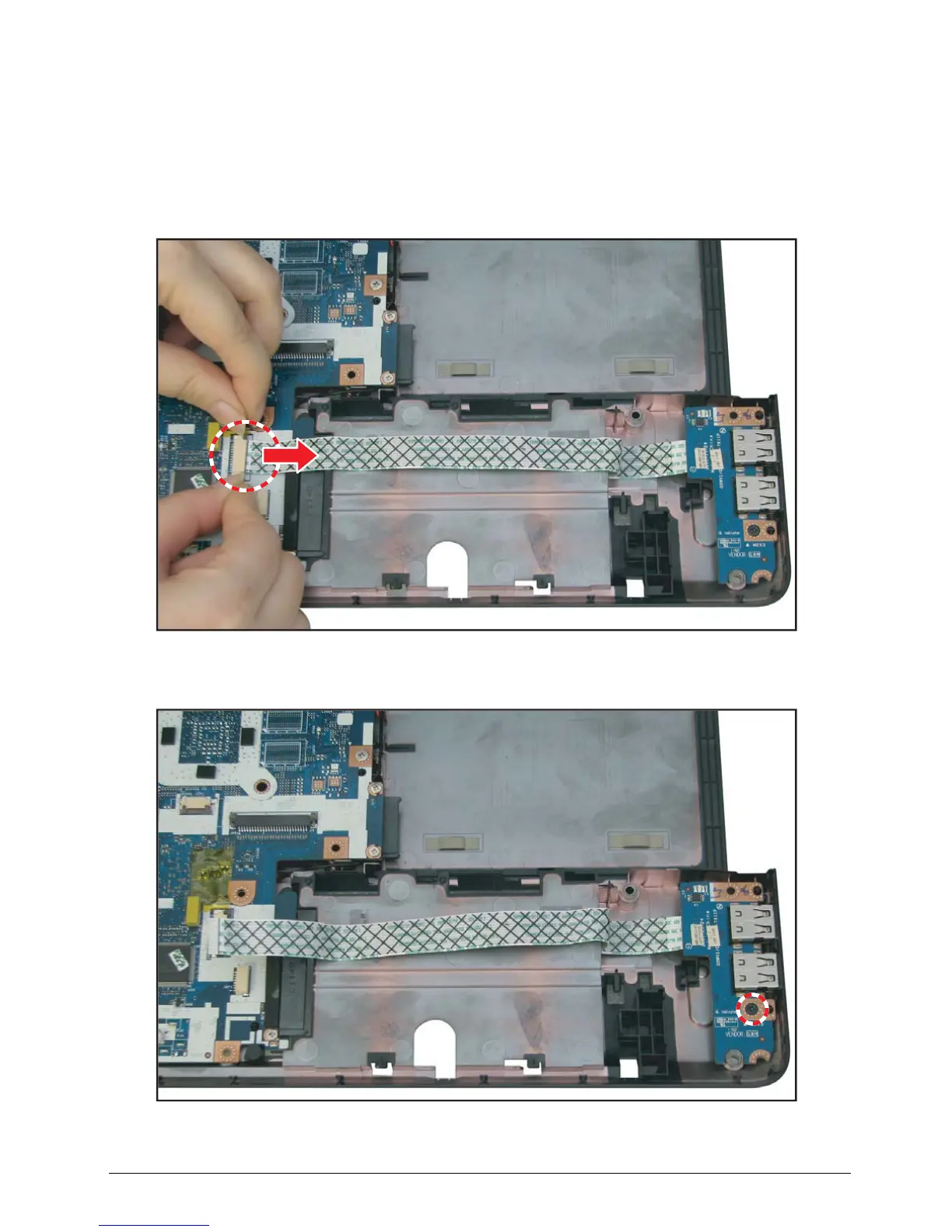

Figure 5:97. Disconnecting the USB Module Cable
3. Remove the screw securing the USB module to the lower case.
Figure 5:98. Removing the USB Module Screw
