Service and Maintenance 5-56
Thermal Module Installation
1. Align the thermal module to the mainboard.

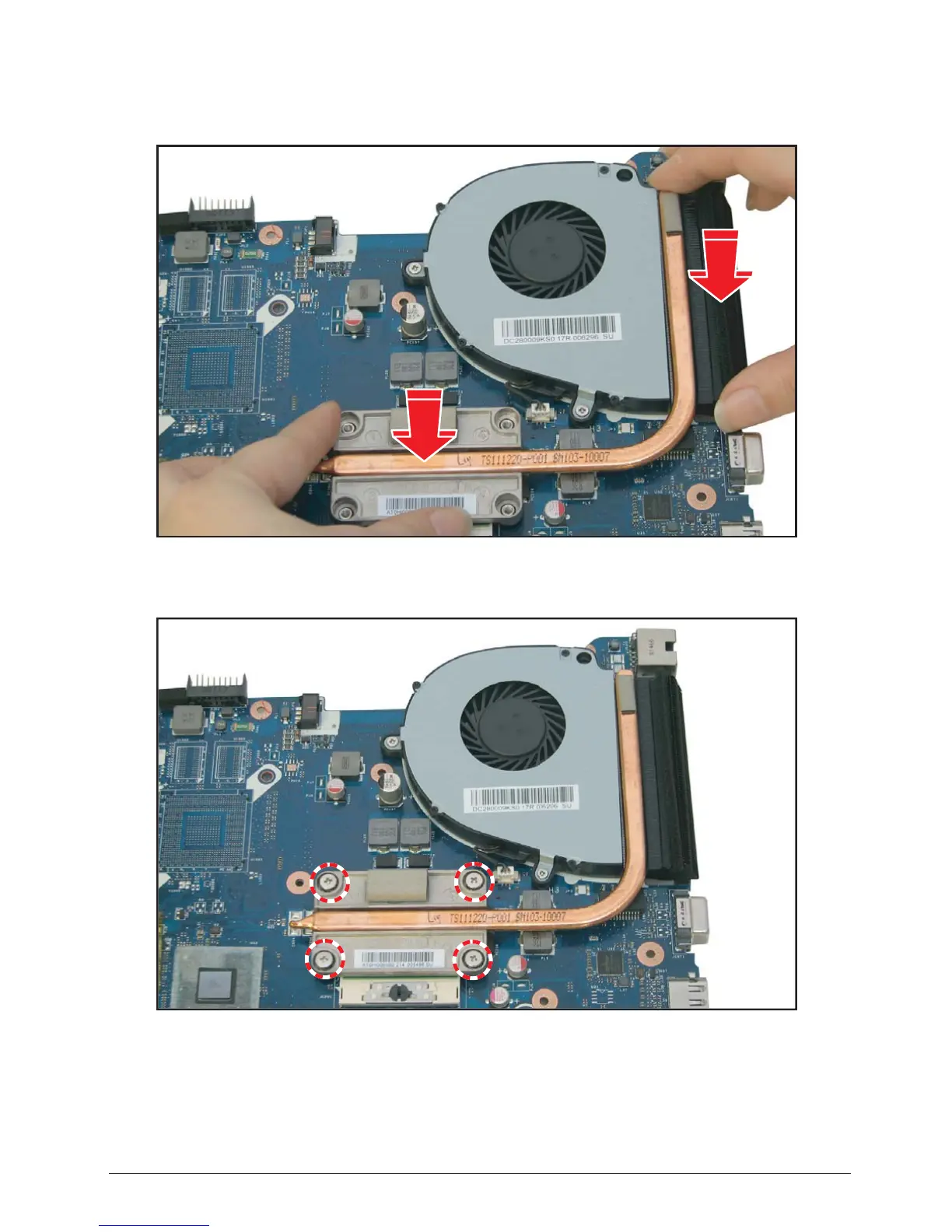

Figure 5:79. Installing the Thermal Module
2. Attach the four (4) screws to secure the thermal module to the mainboard.
Figure 5:80. Securing the Thermal Module Screws
3. Install the mainboard (see Mainboard Installation on page 5-47).
