5-25 Service and Maintenance
HDD Carrier Removal
Prerequisite:
HDD Module Removal on page 5-23
Remove the screws securing the HDD brackets to the HDD.

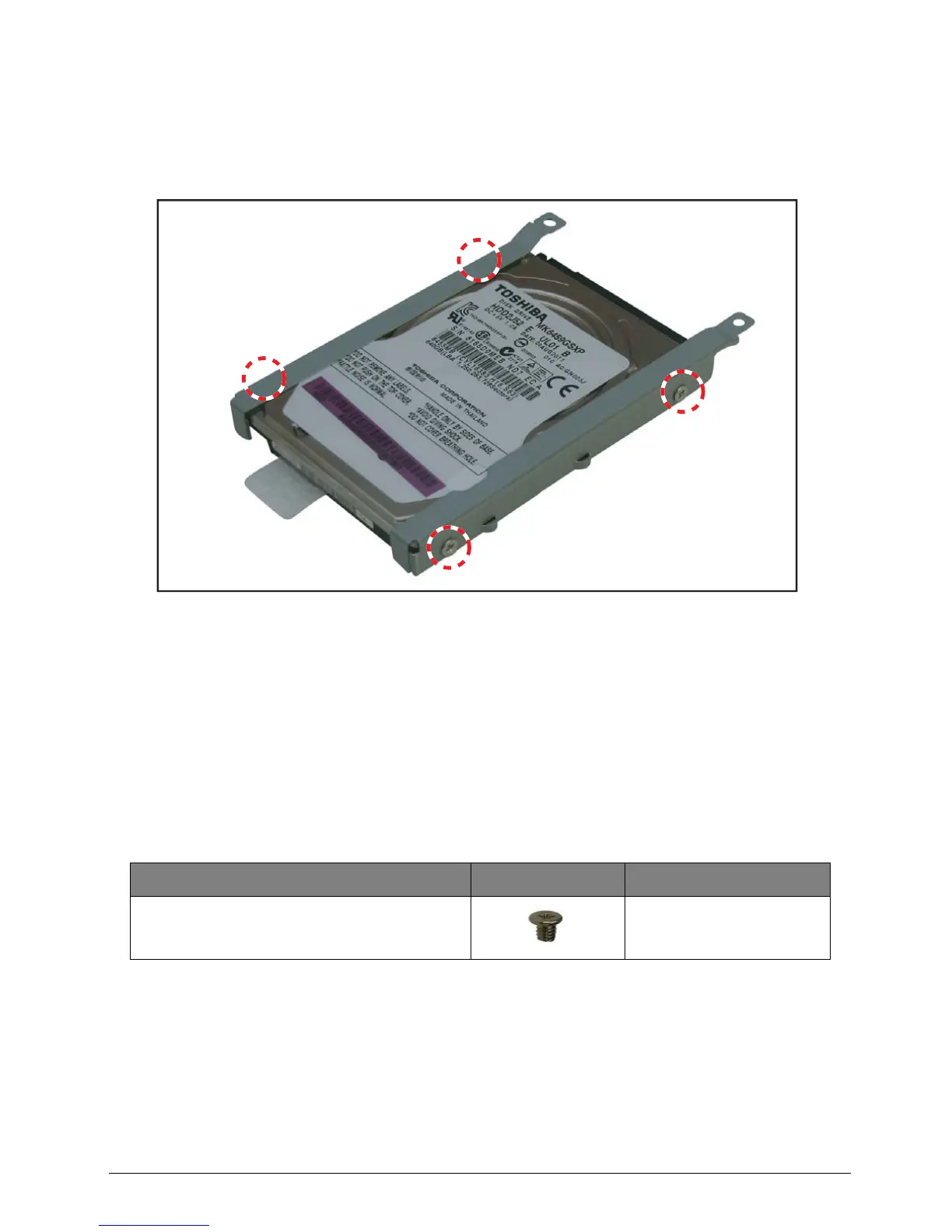

Figure 5:31. Removing the HDD Brackets
HDD Carrier Installation
1. Attach the screws to secure the HDD brackets to the HDD.
2. Install the HDD module (see HDD Module Installation on page 5-24).
Table 5:4. HDD Carrier Screws
Screw Name Screw Type Quantity
M 3.0 x 3.0 4
