Jumper and Connector Locations 3-2
Jumper and Connector Locations
Mainboard Top View

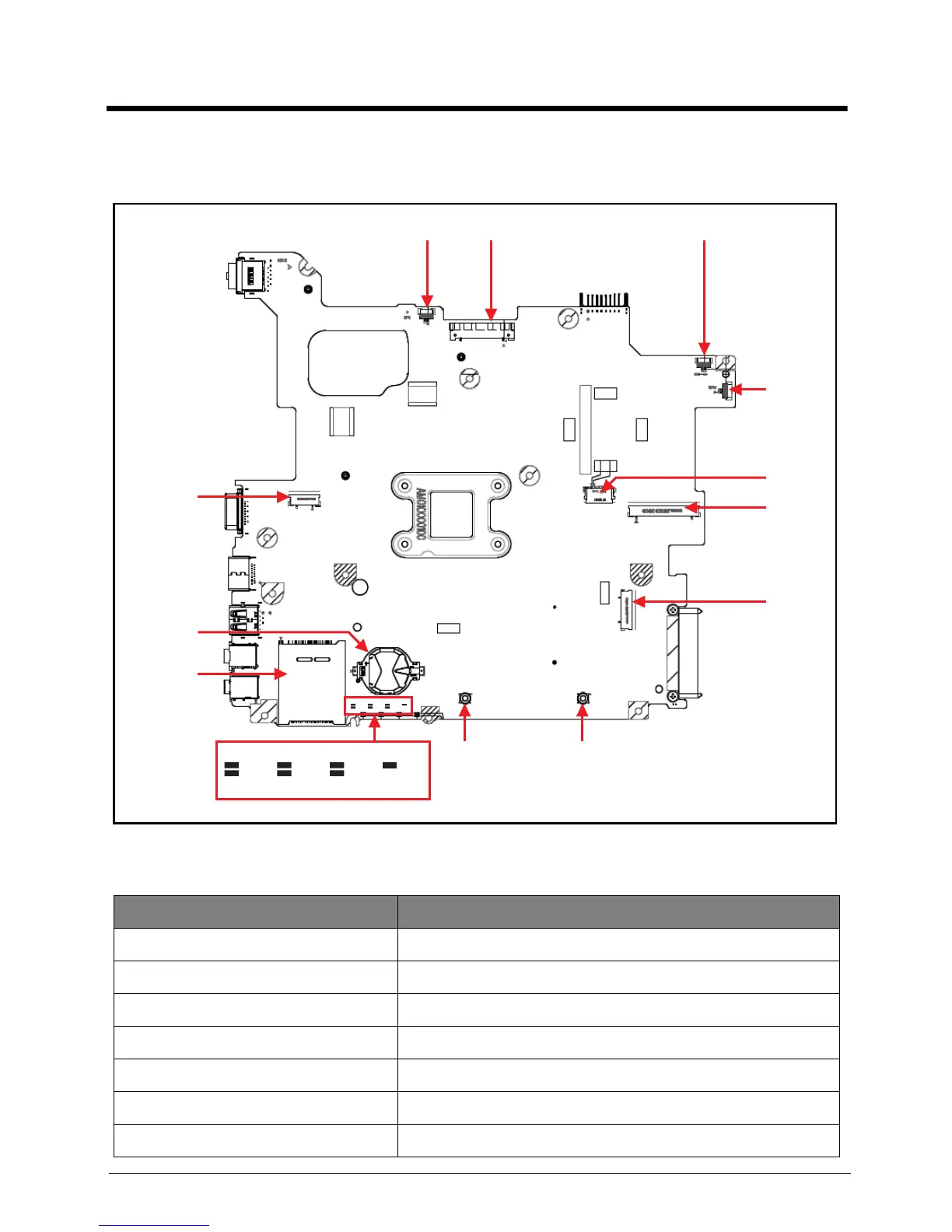

Figure 3:1. Mainboard Top
Table 3:1. Mainboard Top Jumper and Connectors
Item Description
JSPK1 Left Side Speaker Connector
JLVDS1 LVDS Connector
JMIC2 Internal Digital MIC Connector
JSPK2 Right Side Speaker Connector
JTP1 Touchpad Connector
JKB1 Internal Keyboard Connector
JUSB2 USB 2.0 Connector
SW2SW1
LED1
LED5
LED2
LED6
LED3
LED7
LED4
JSPK1
JREAD1
JLED1
JBATT1
JKB1
JTP1
JSPK2
JUSB2
JLVDS1 JMIC2
