Service and Maintenance 5-22
DIMM Module Installation
1. Insert the memory module into the slot.

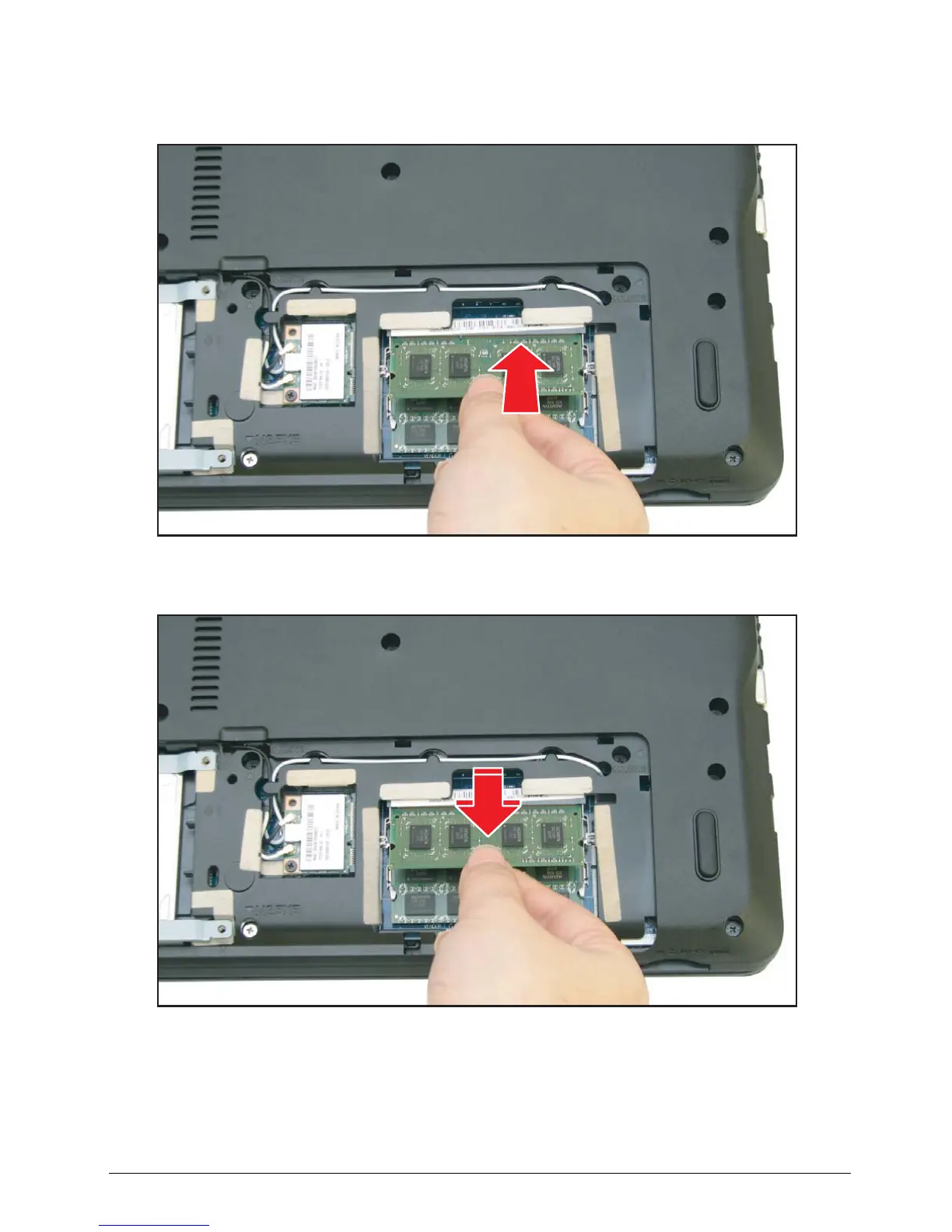

Figure 5:25. Installing the DIMM Module (1 of 2)
2. Push down the memory module until the clips lock in place.
Figure 5:26. Installing the DIMM Module (2 of 2)
3. Repeat steps 1 and 2 for the remaining module.
4. Install the base door (see Base Door Installation on page 5-13).
