Acer Aspire E1-521 - LCD Panel Installation

Service and Maintenance 5-96
LCD Panel Installation

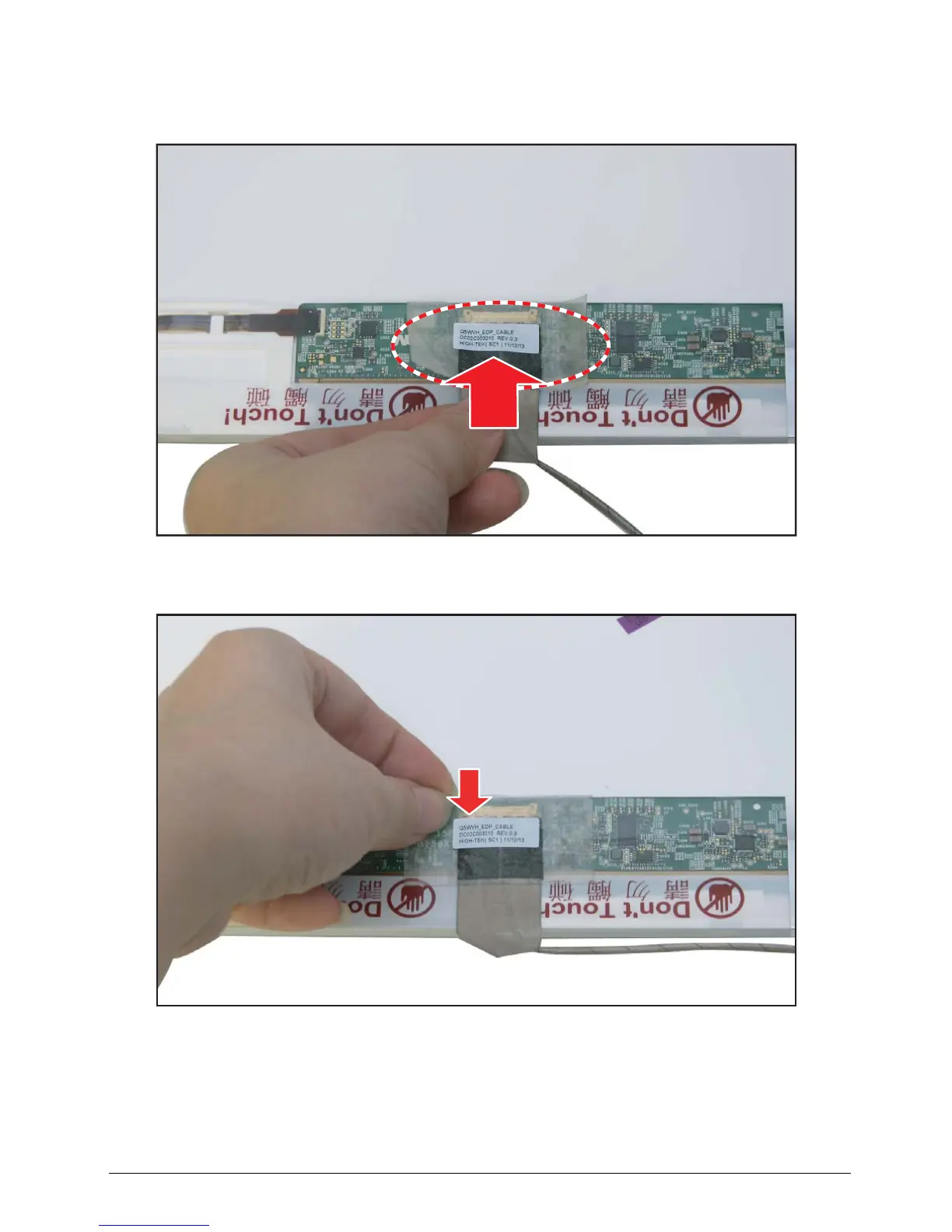

1. Connect the LVDS cable connector to the LCD panel connector.
Figure 5:144. Installing the LVDS Cable (1 of 3)
2. Attach the protective tape to cover the LVDS cable connector.
Figure 5:145. Installing the LVDS Cable (2 of 2)
