Acer Aspire E1-521 - Thermal Module Removal

5-55 Service and Maintenance
Thermal Module Removal
Prerequisite:
 Mainboard Removal on page 5-43
1. Remove the four (4) screws securing the thermal module to the mainboard.

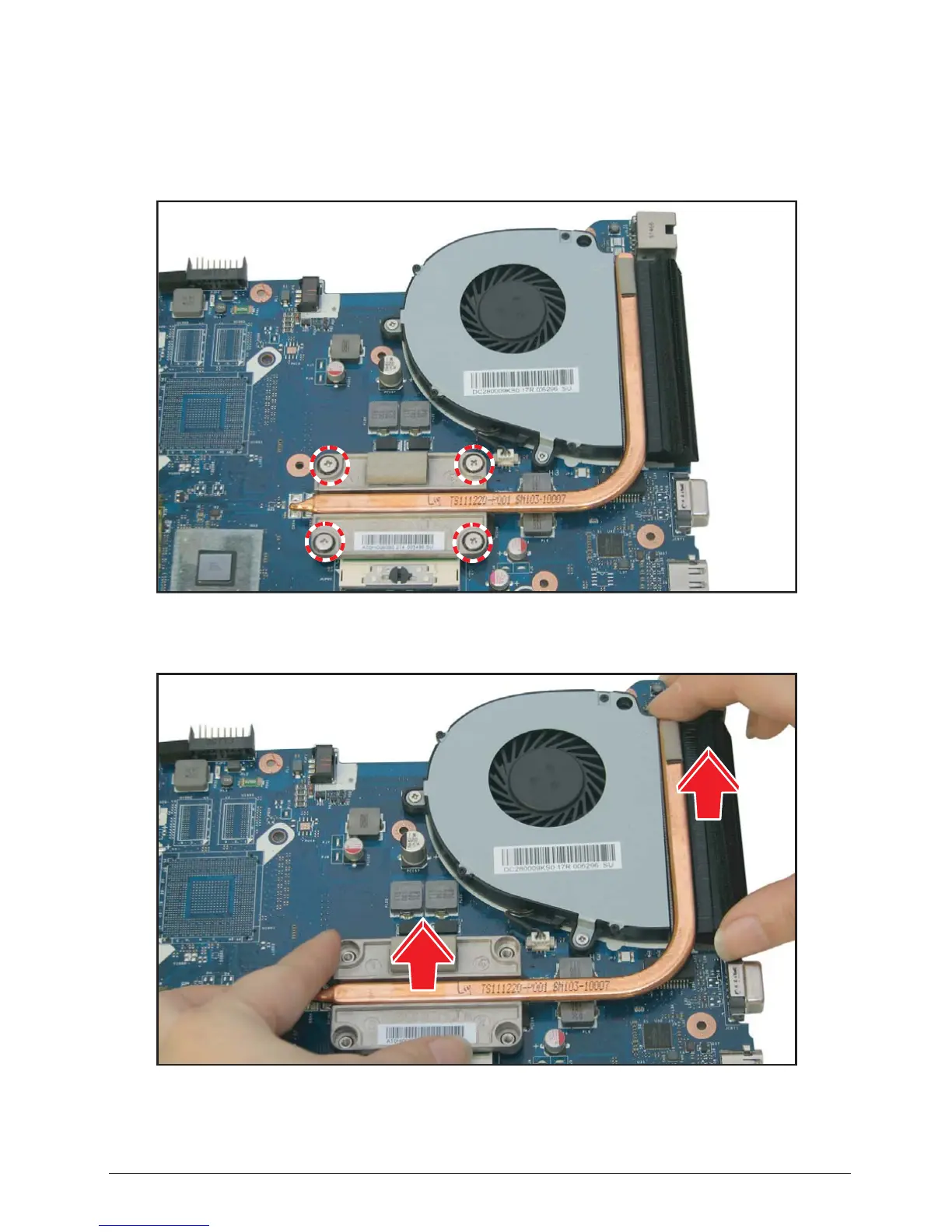

Figure 5:77. Removing the Thermal Module Screws
2. Lift to remove the thermal module.
Figure 5:78. Removing the Thermal Module
