Service and Maintenance 5-76
LCD Module Removal
Prerequisite:
Mainboard Removal on page 5-43
Speaker Removal on page 5-60
1. Pull the main antenna cable to pass through the lower case hole (A), detach the adhesive tape,
and remove from the hook guides.

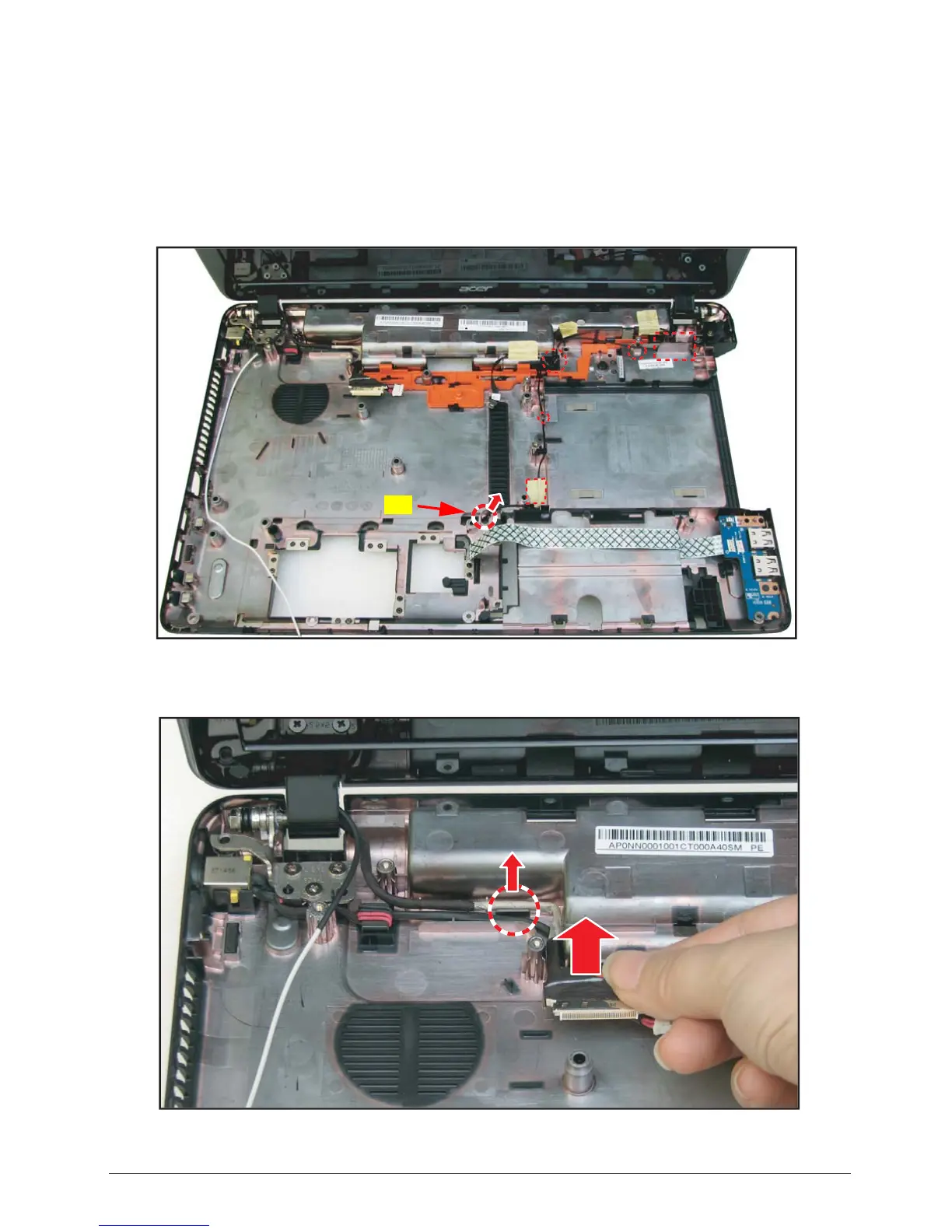

Figure 5:113. Removing the Main Antenna Cable
2. Lift the LVDS cable to release from the guides on the lower case.
Figure 5:114. Removing the LVDS Cable
