5-77 Service and Maintenance

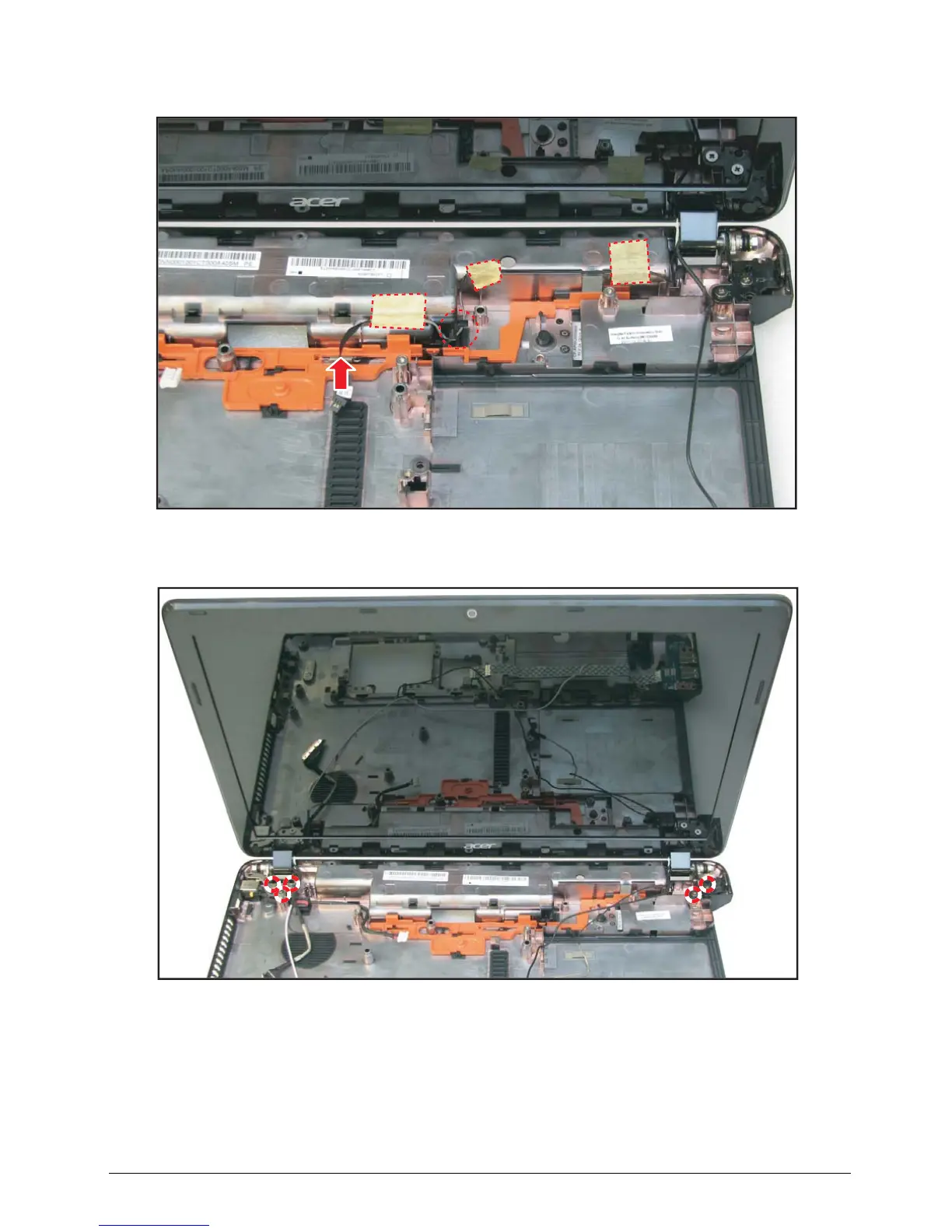

3. Remove the adhesive tapes securing the microphone cable, then lift the microphone cable to
release from the guides on the lower case.
Figure 5:115. Removing the Microphone Cable
4. Remove the five (5) screws securing the LCD module hinges to the lower case.
Figure 5:116. Removing the LCD Module Screws
To Next Page
