CPU Removal
Prerequisite:
Thermal Module Removal on page 5-55
1. Using a flat screwdriver, turn the captive screw 180º counter-clockwise to release the CPU.

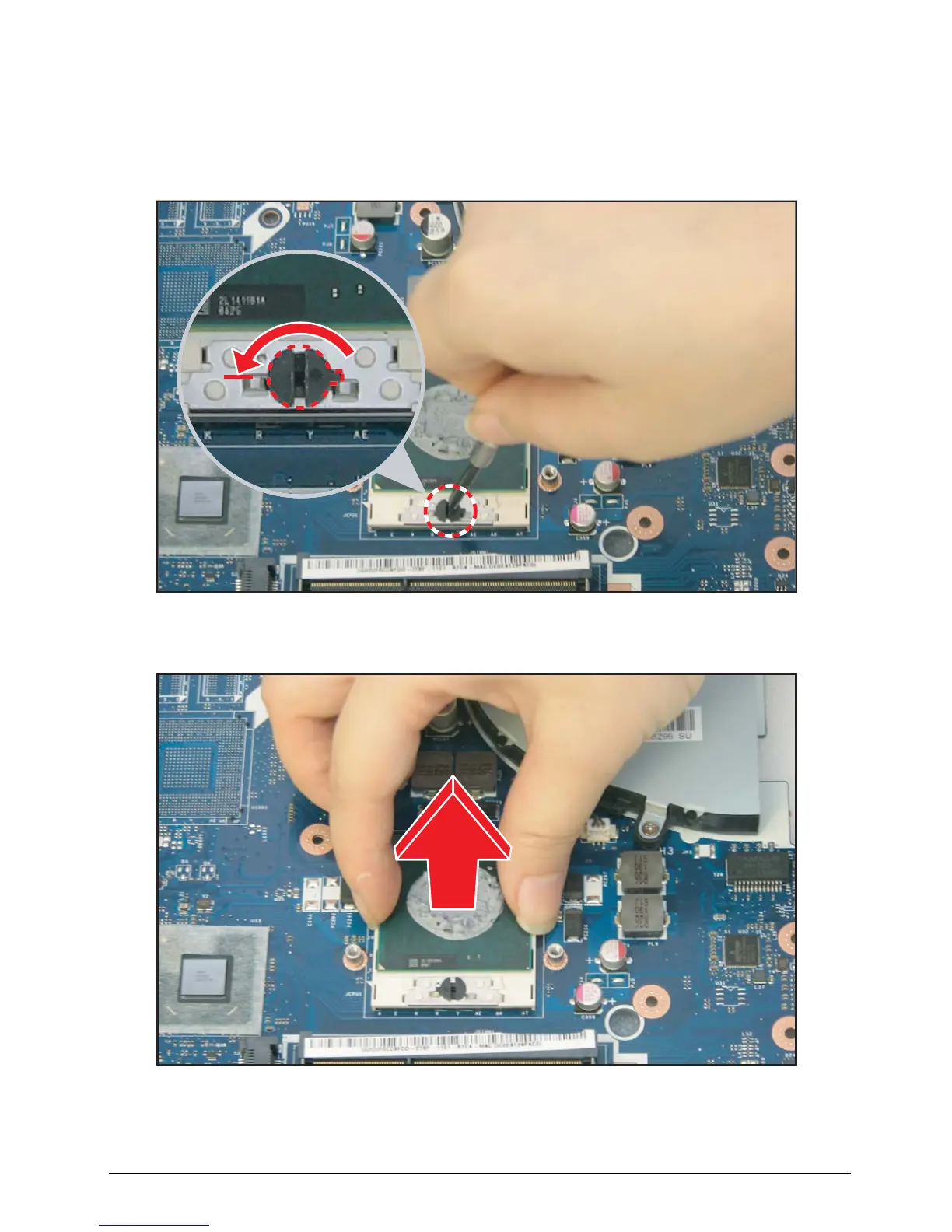

Figure 5:81. Removing the CPU (1 of 2)
2. Lift to remove the CPU from the mainboard socket.
Figure 5:82. Removing the CPU (2 of 2)
