Service and Maintenance 5-102
WLAN Antenna Removal
Prerequisite:
LCD Panel Removal on page 5-92
1. Remove main (black) and the auxiliary (white) antenna cables from the guides on the LCD
cover.

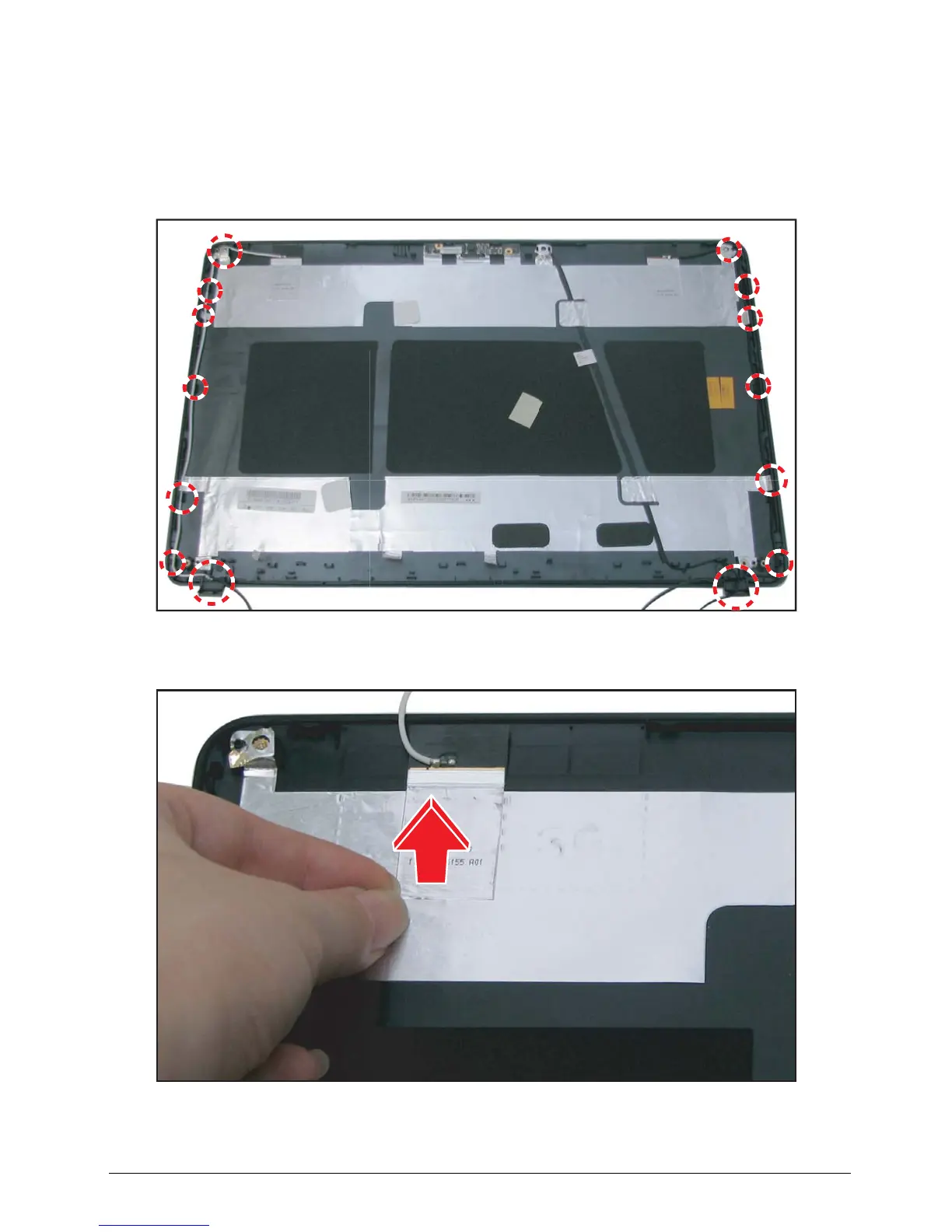

Figure 5:153. Removing the Antenna Cables
2. Remove the auxiliary antenna.
Figure 5:154. Removing the WLAN Antennas (1 of 2)
