Acer Aspire E1-521 - Mainboard Installation

5-47 Service and Maintenance
Mainboard Installation

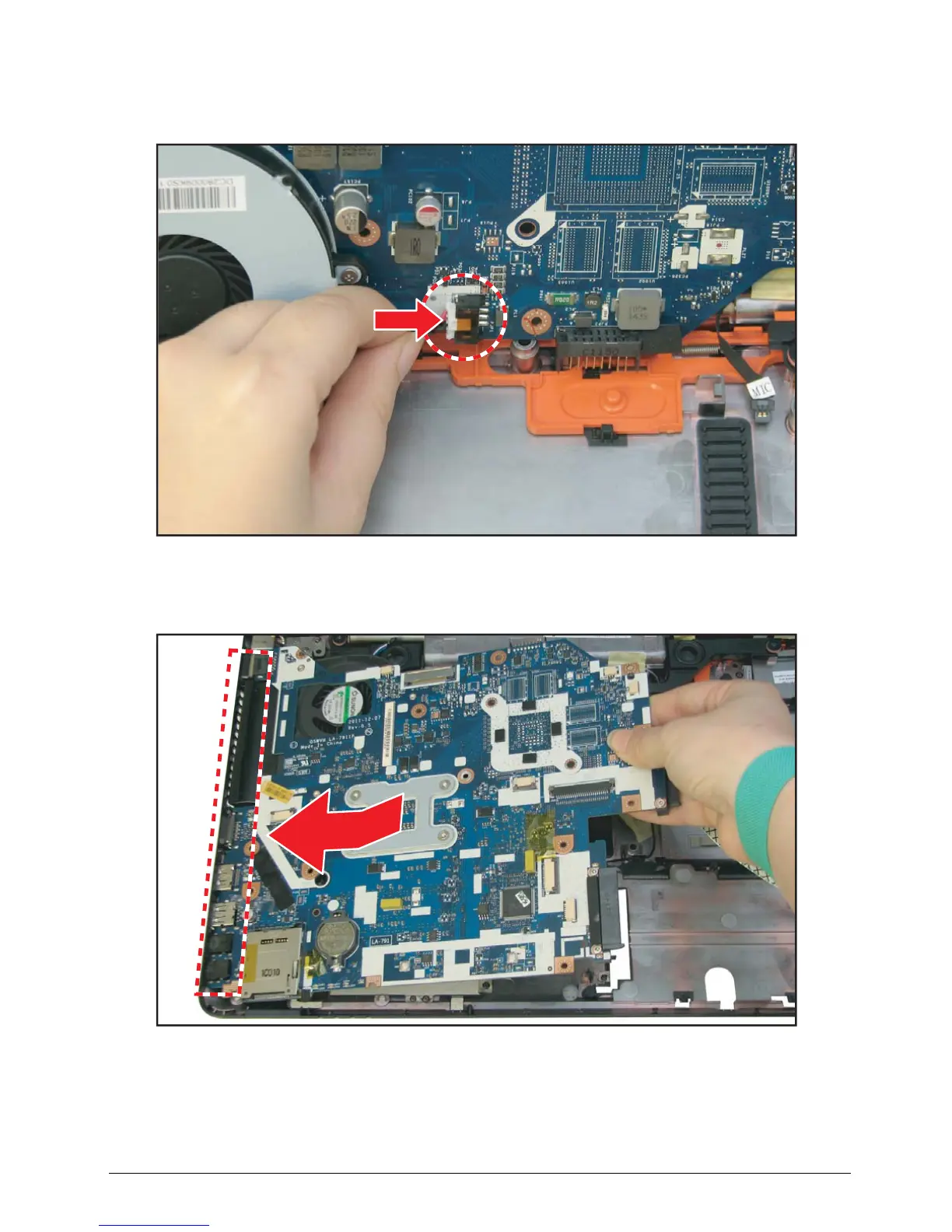

1. Connect the DC-in cable connector to the mainboard connector.
Figure 5:65. Connecting the DC-In Cable
2. Align the left side connectors of the mainboard to the slots on the lower case, and then push to
install the mainboard.
Figure 5:66. Installing the Mainboard
