Service and Maintenance 5-46
7. On the underside of the mainboard, disconnect the DC-in cable connector from the mainboard
connector.

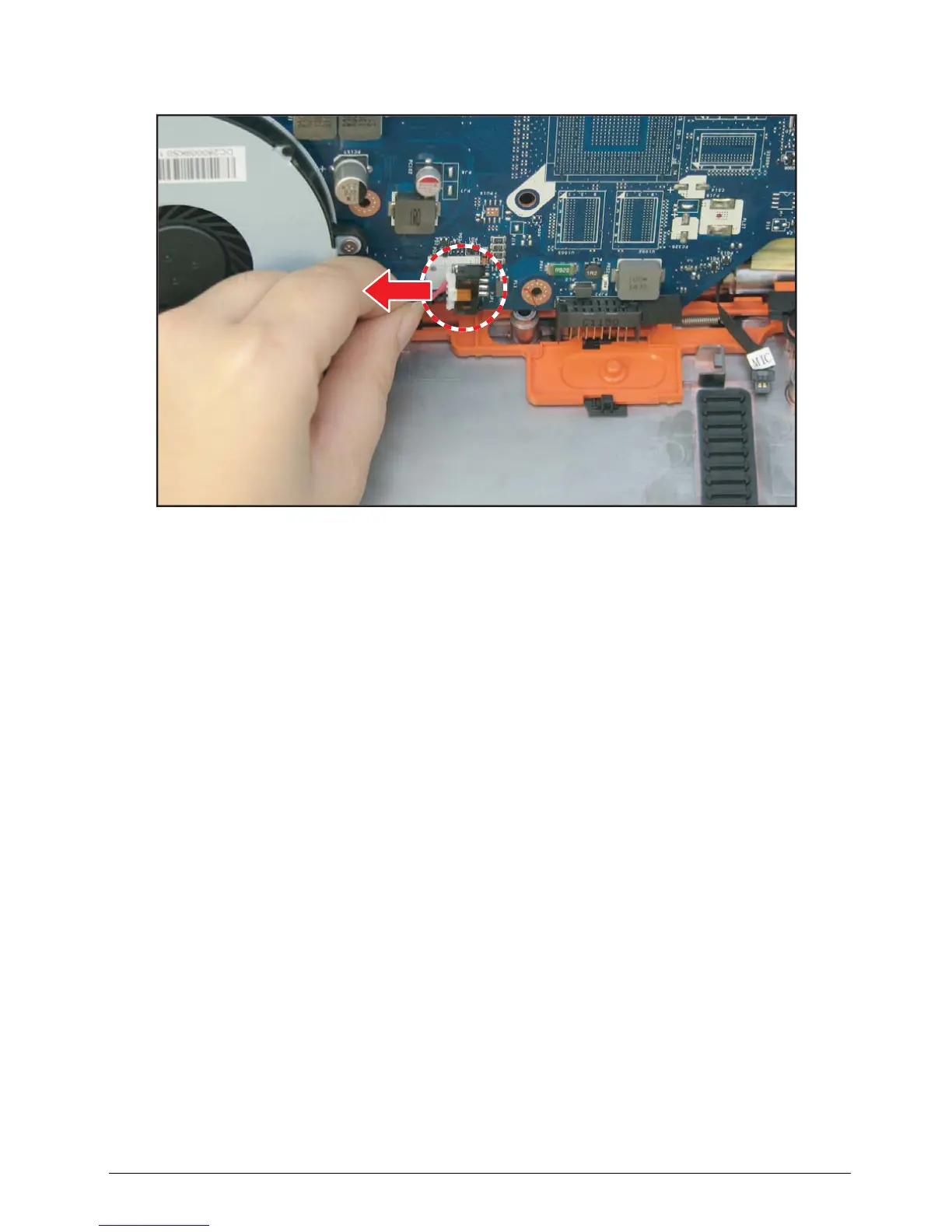

Figure 5:64. Disconnecting the DC-In Cable
