LCD Panel Bracket Installation
1. Attach the six (6) screws to secure the LCD panel brackets to the LCD panel.

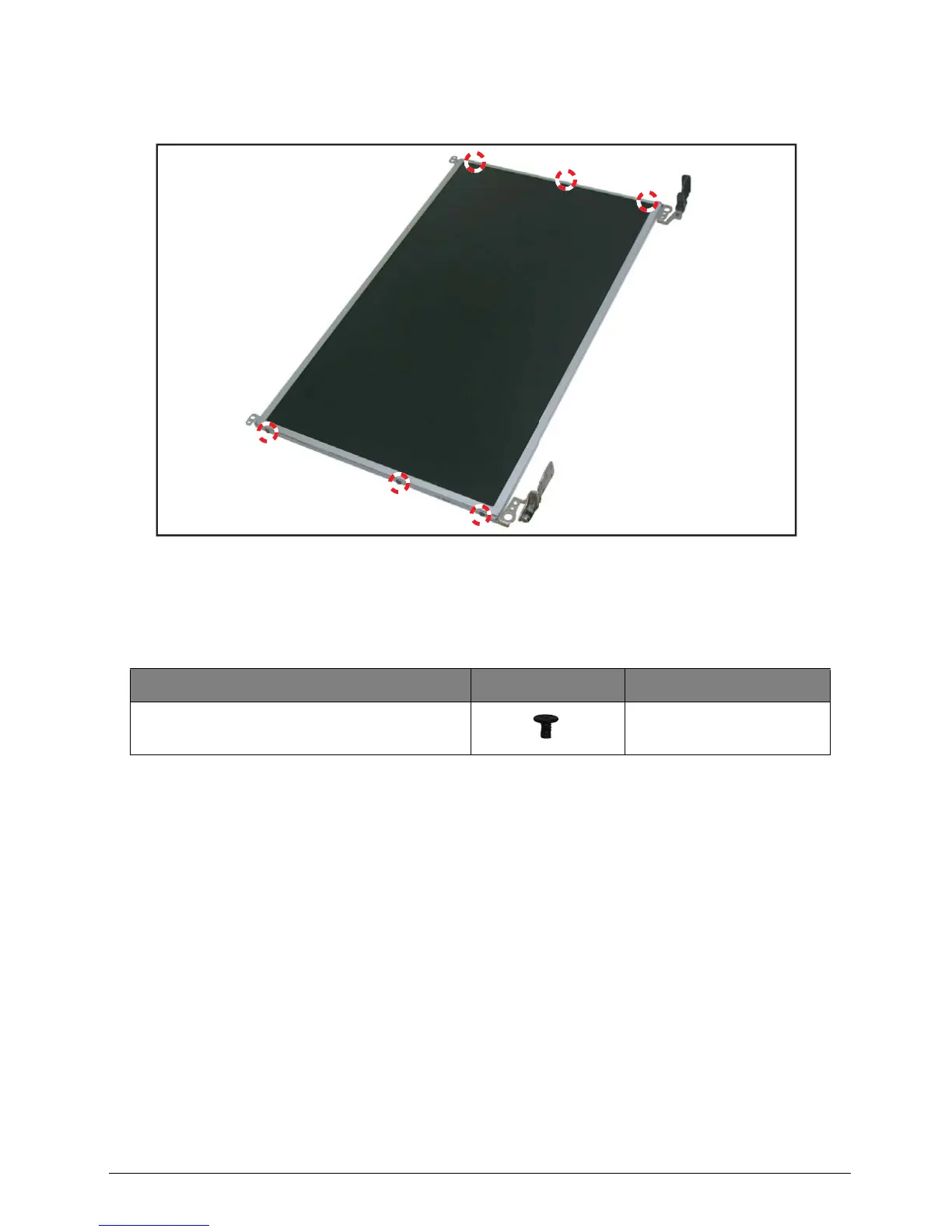

Figure 5:152. Installing the LCD Panel Brackets
2. Install the LCD panel (see LCD Panel Installation on page 5-96).
Table 5:16. LCD Panel Bracket Screws
Screw Name Screw Type Quantity
M 2.0 x 3.0 6
