5-21 Service and Maintenance
DIMM Module Removal
Prerequisite:
Base Door Removal on page 5-11
1. Locate the DIMM module (see Figure 5:10, page 5-12).
2. Push the module clips outwards.

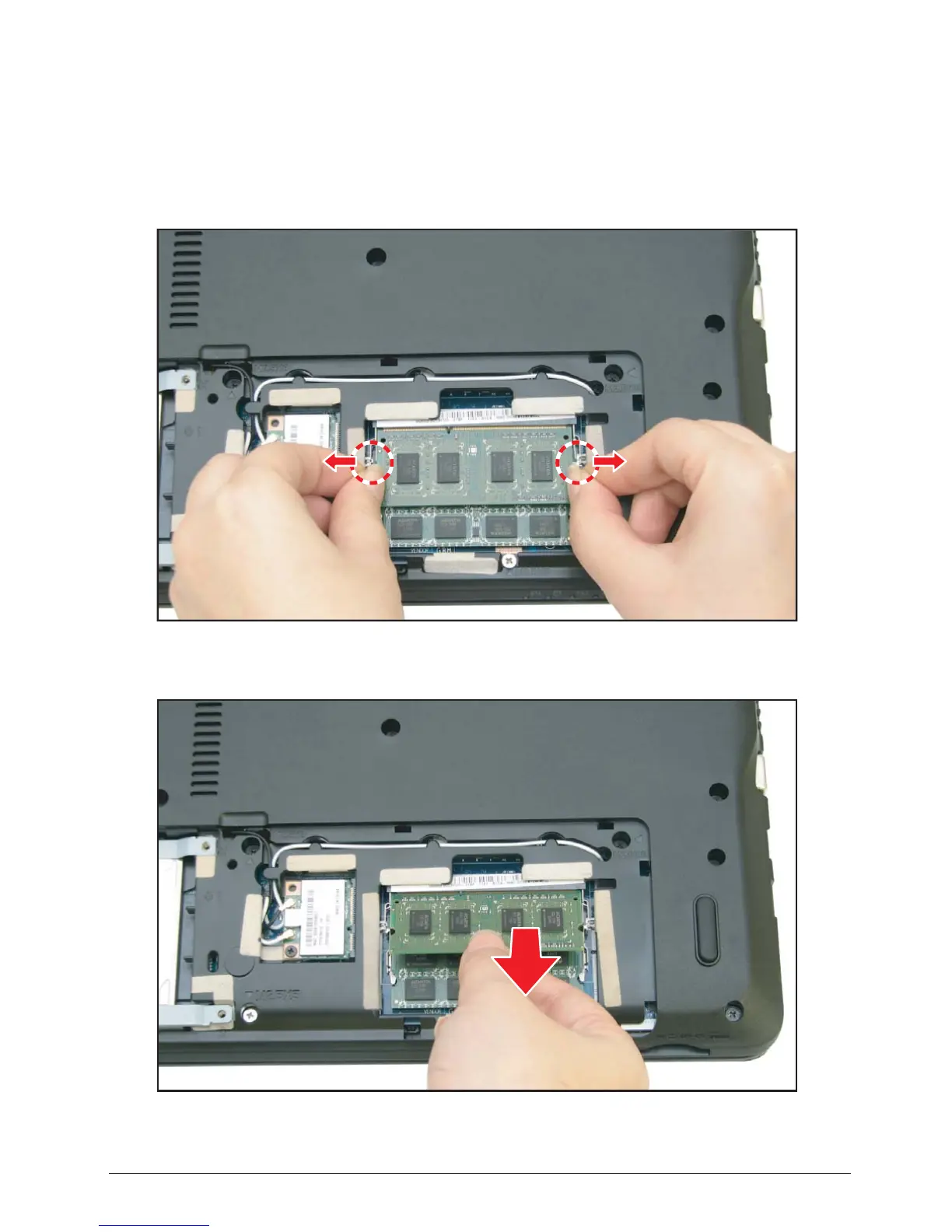

Figure 5:23. Unclipping the Module Clips
3. Pull to remove the memory module out from the slot.
Figure 5:24. Removing the DIMM Module
4. Repeat steps 1 and 2 for the remaining module.
