Service and Maintenance 5-106
Microphone Module Removal
Prerequisite:
LCD Panel Removal on page 5-92
1. On the LCD cover, remove the metallic tape securing the microphone cable.

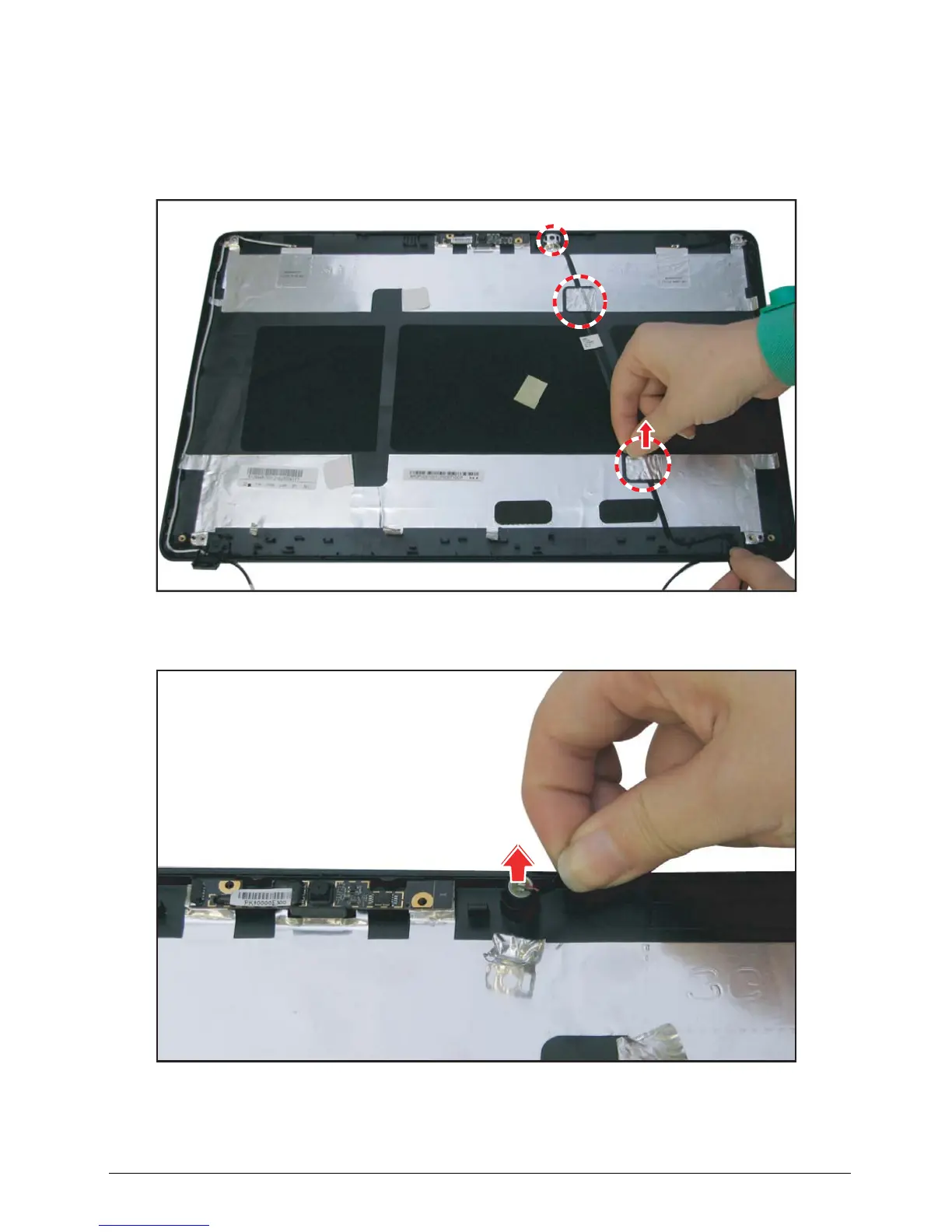

Figure 5:159. Removing the Microphone Module (1 of 2)
2. Lift to remove the microphone from the slot on the LCD cover.
Figure 5:160. Removing the Microphone Module (2 of 2)
