Service and Maintenance 5-24
HDD Module Installation
1. Place the HDD module into the bay.

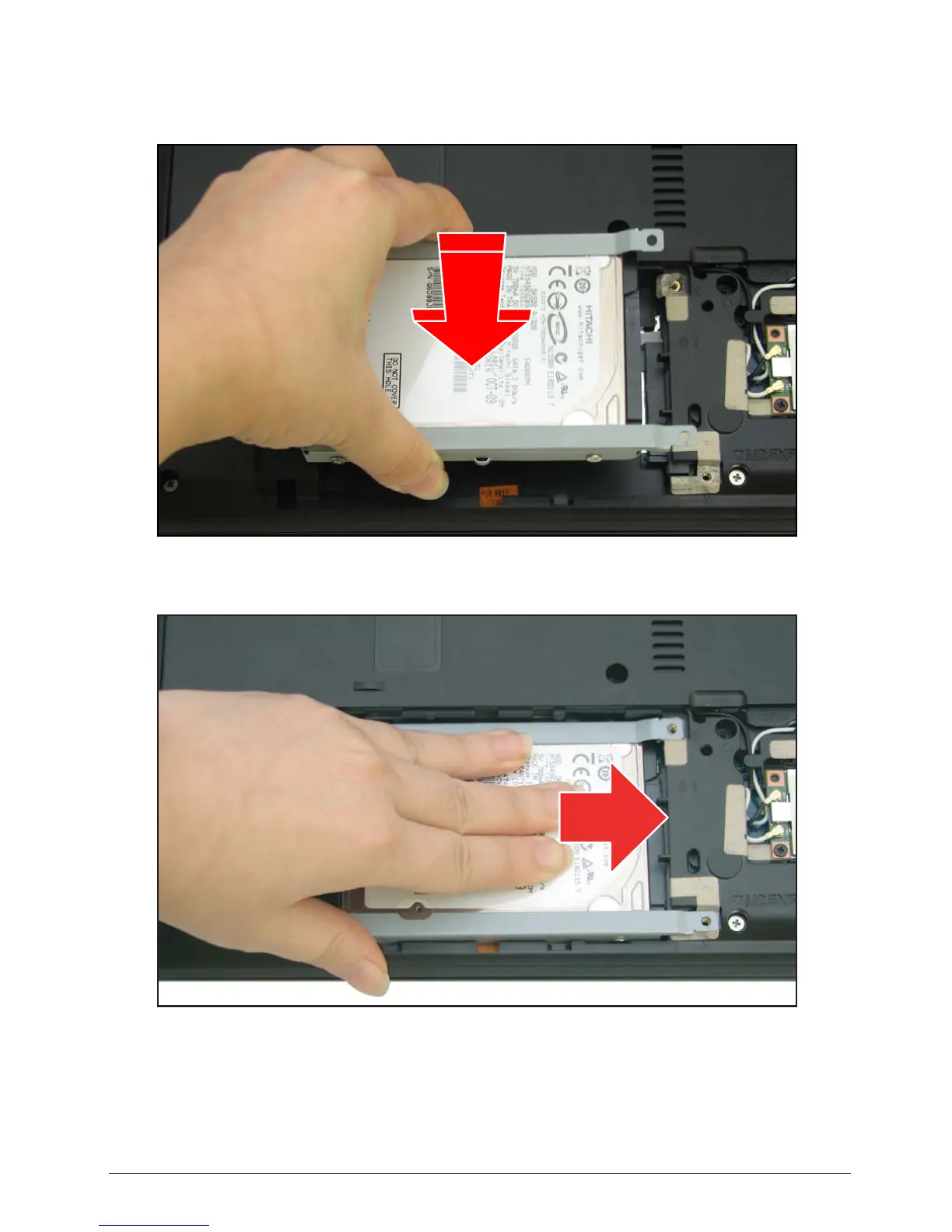

Figure 5:29. Installing the HDD Module (1 of 2)
2. Push to connect the HDD connector to the mainboard connector.
Figure 5:30. Installing the HDD Module (2 of 2)
3. Install the base door (see Base Door Installation on page 5-13).
