5. Attach the two (2) screws to secure the left speaker.

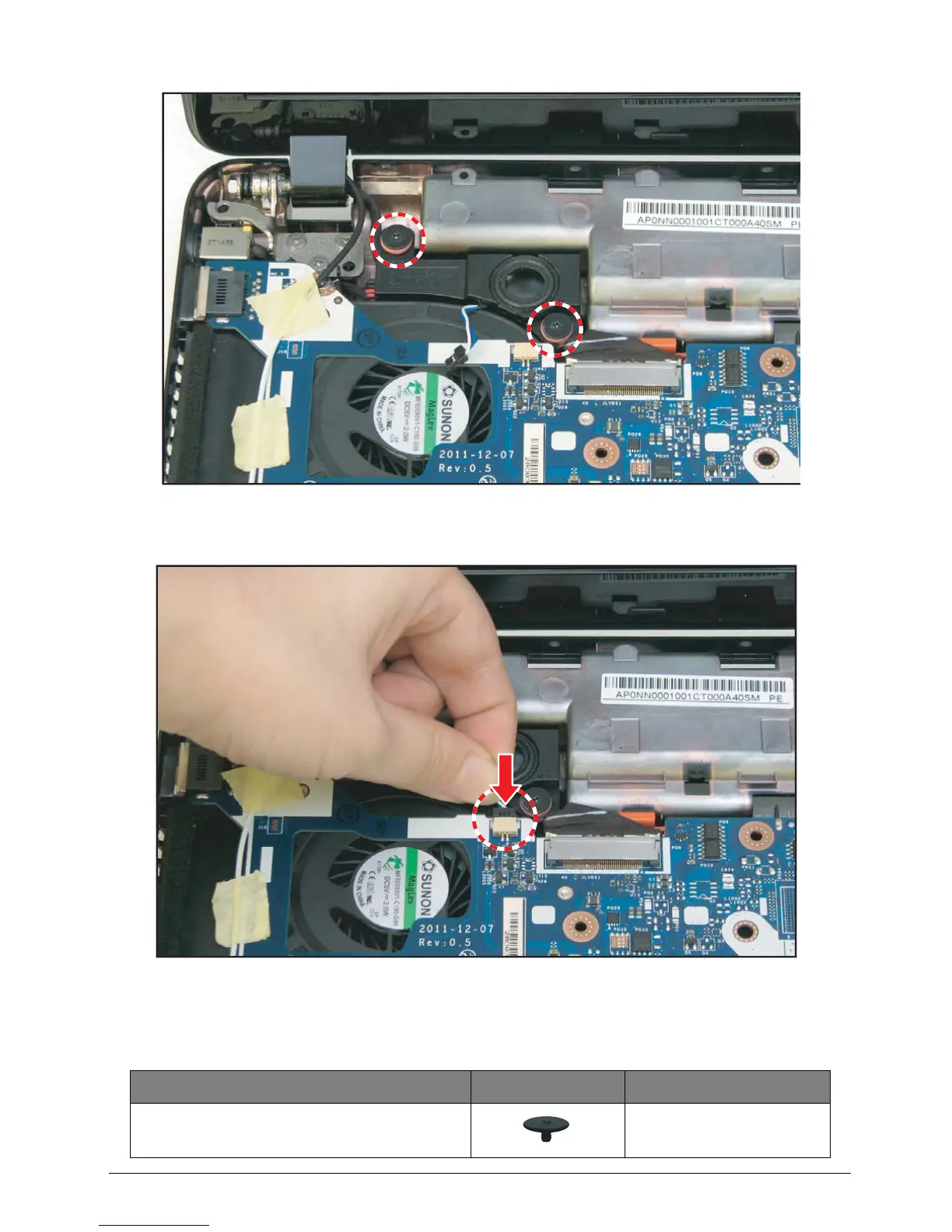

Figure 5:95. Installing the Left Speaker Screws
6. Connect the left speaker cable connector to the mainboard connector.
Figure 5:96. Connecting the Left Speaker Cable
7. Install the upper case (see Upper Case Installation on page 5-38).
Table 5:10. Speakers Screws
Screw Name Screw Type Quantity
M 2.0 x 3.0 4
