5-29 Service and Maintenance
3. Connect the antenna cables to the WLAN module connectors:
Main (A - black) antenna cable to the upper connector.
Auxiliary (B - white) antenna cable to the lower connector.

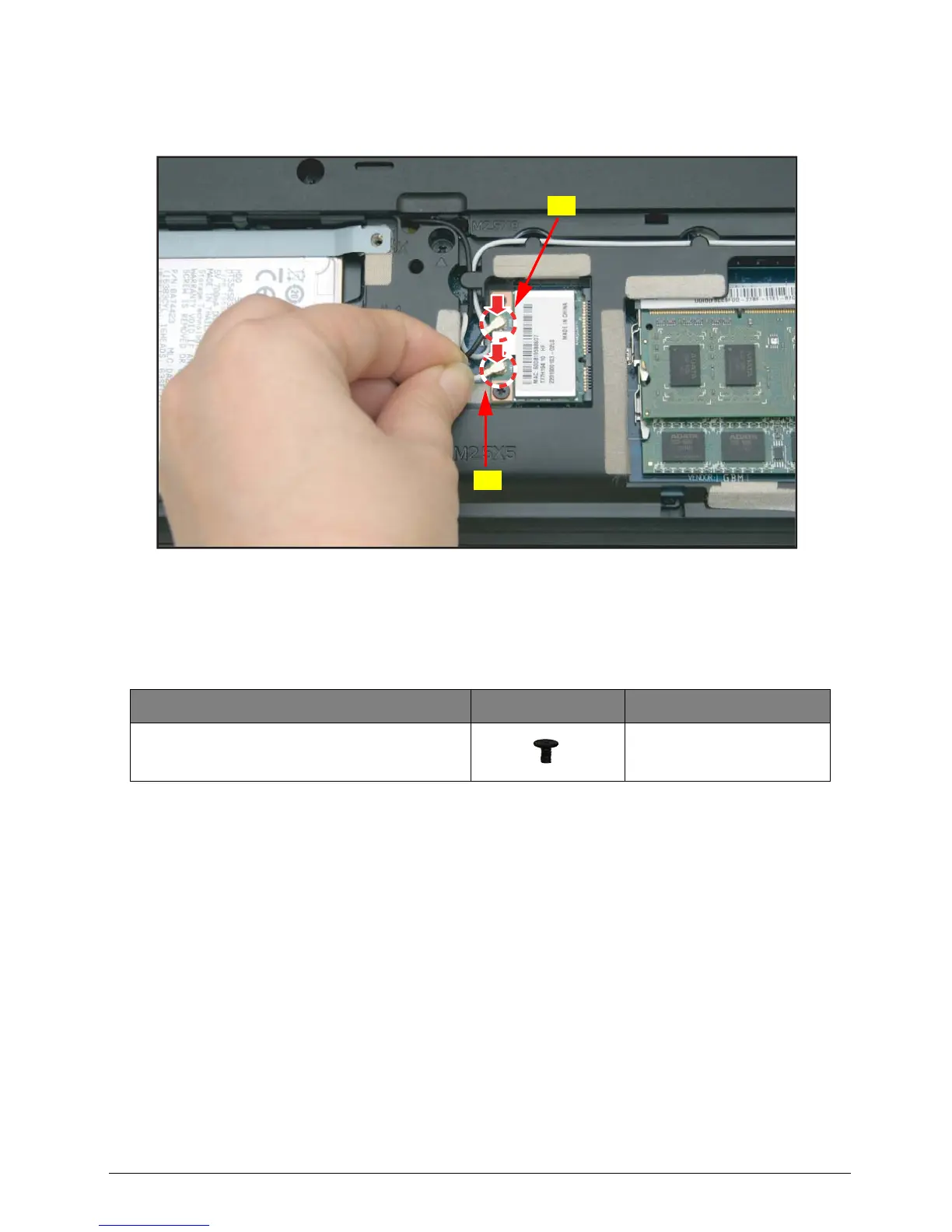

Figure 5:37. Connecting the Antenna Cables
4. Install the base door (see Base Door Installation on page 5-13).
Table 5:5. WLAN Module Screws
Screw Name Screw Type Quantity
M 2.0 x 3.0 1
