5-69 Service and Maintenance
3. Press on (A) to attach the adhesives on the USB cable to the lower case and connect the USB
module cable connector to the mainboard connector (B).

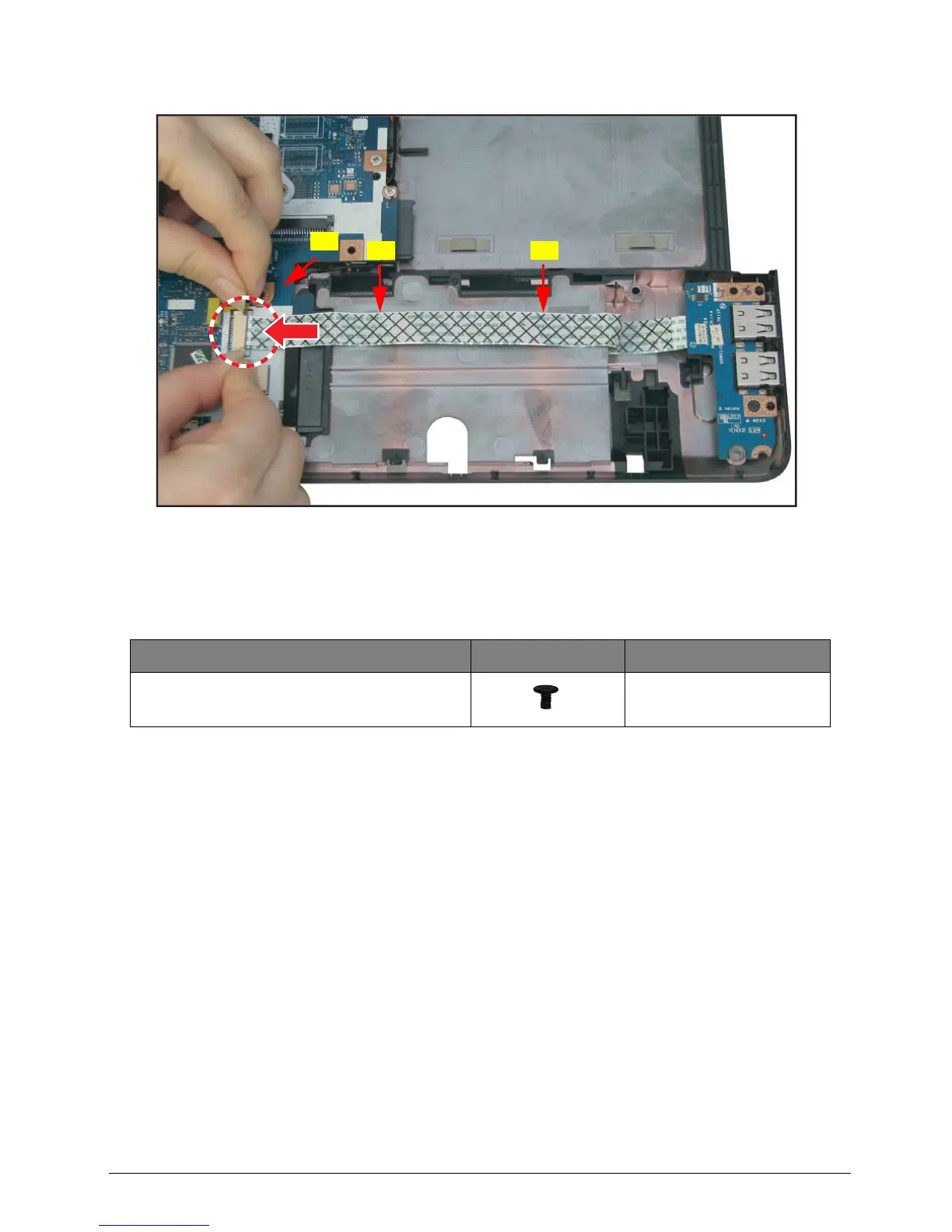

Figure 5:102. Connecting the USB Module Cable
4. Install the upper case (see Upper Case Installation on page 5-38).
Table 5:11. USB Module Screws
Screw Name Screw Type Quantity
M 2.0 x 3.0 1
