Acer Aspire E1-521 - Page 193

Service and Maintenance 5-94

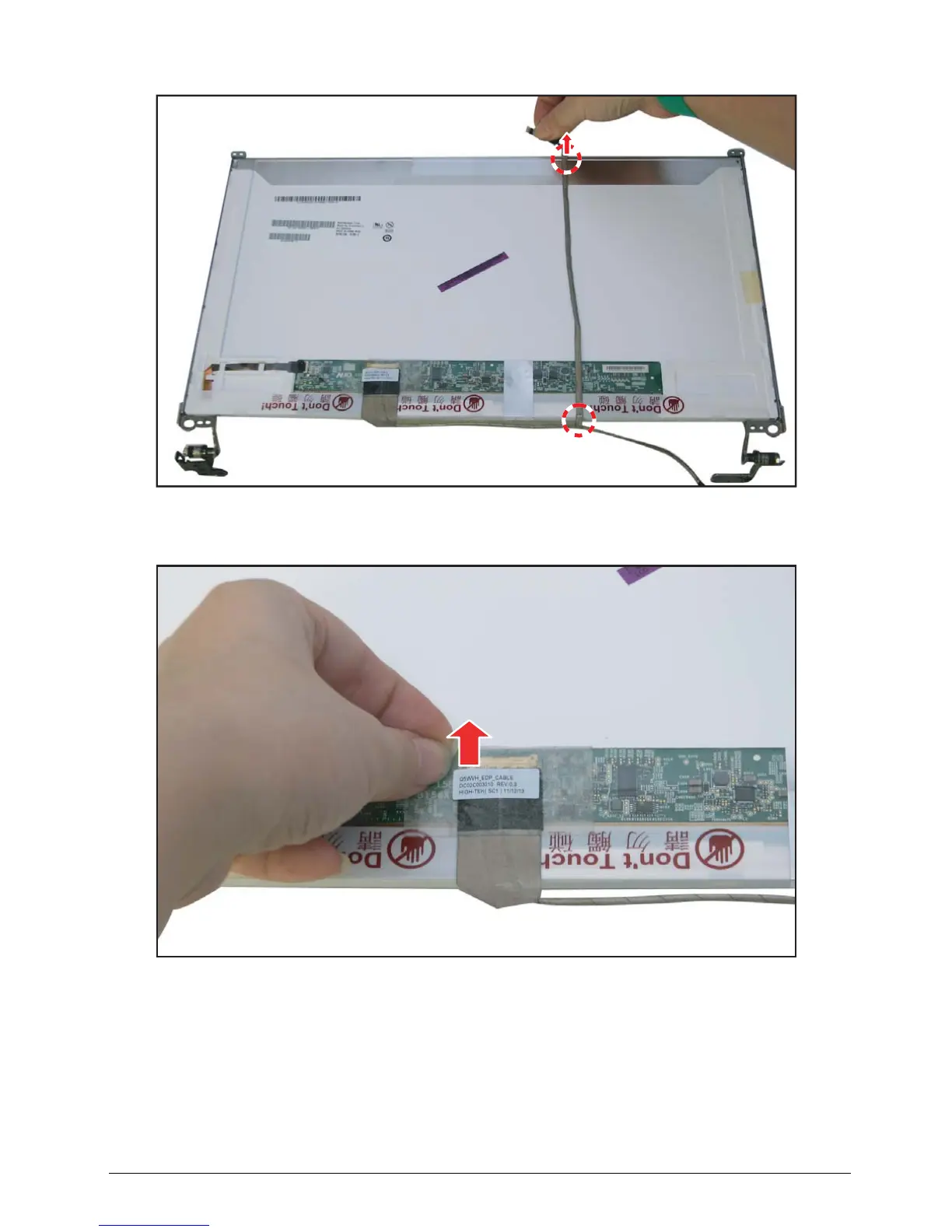

5. Remove the camera cable from the LCD panel.
Figure 5:141. Removing the Camera Cable
6. Remove the protective tape covering the LVDS cable connector.
Figure 5:142. Removing the LVDS Cable (1 of 2)
