2-15 System Utilities
6. On the target machine, insert the USB disk and reboot the computer.
7. Boot into DOS using the USB disk.

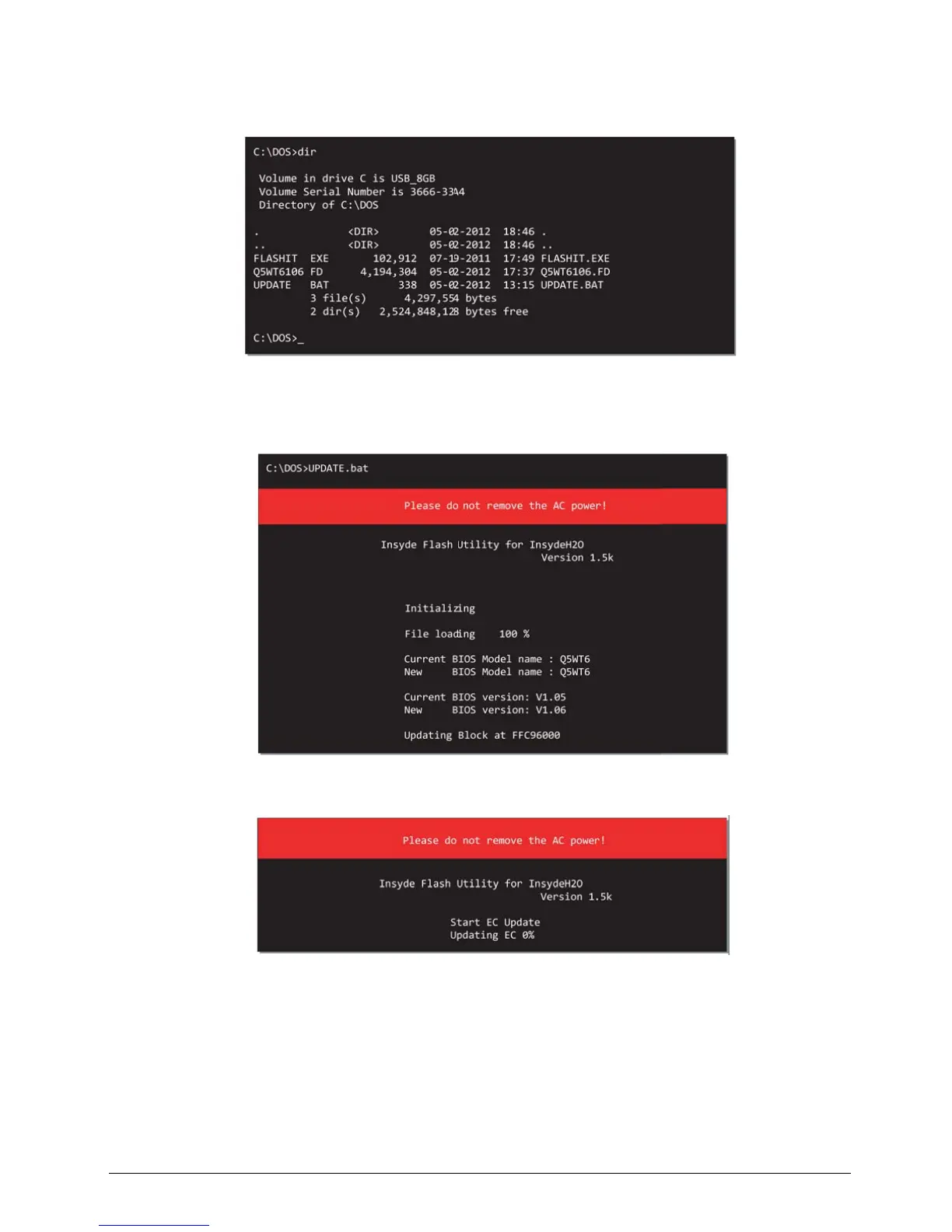

Figure 2:15. Booting into DOS
8. Execute the batch file. At the command prompt, type UPDATE.bat and press Enter to update
BIOS. Flash process begin.
Figure 2:16. Updating Flash ROM Blocks (1 of 2)
Figure 2:17. Updating Flash ROM Blocks (2 of 2)
Flash is complete when the message Flash complete! is shown.The system restarts
automatically when finished.
