6.2.5 Temperature switch with sensor
This type of task is for calibrating a temperature switch with a sensor. During calibration, it requires to put the DUT into a
temperature source (such as an ADT875/878 dry well or thermostatic bath), as shown in Figure 32.

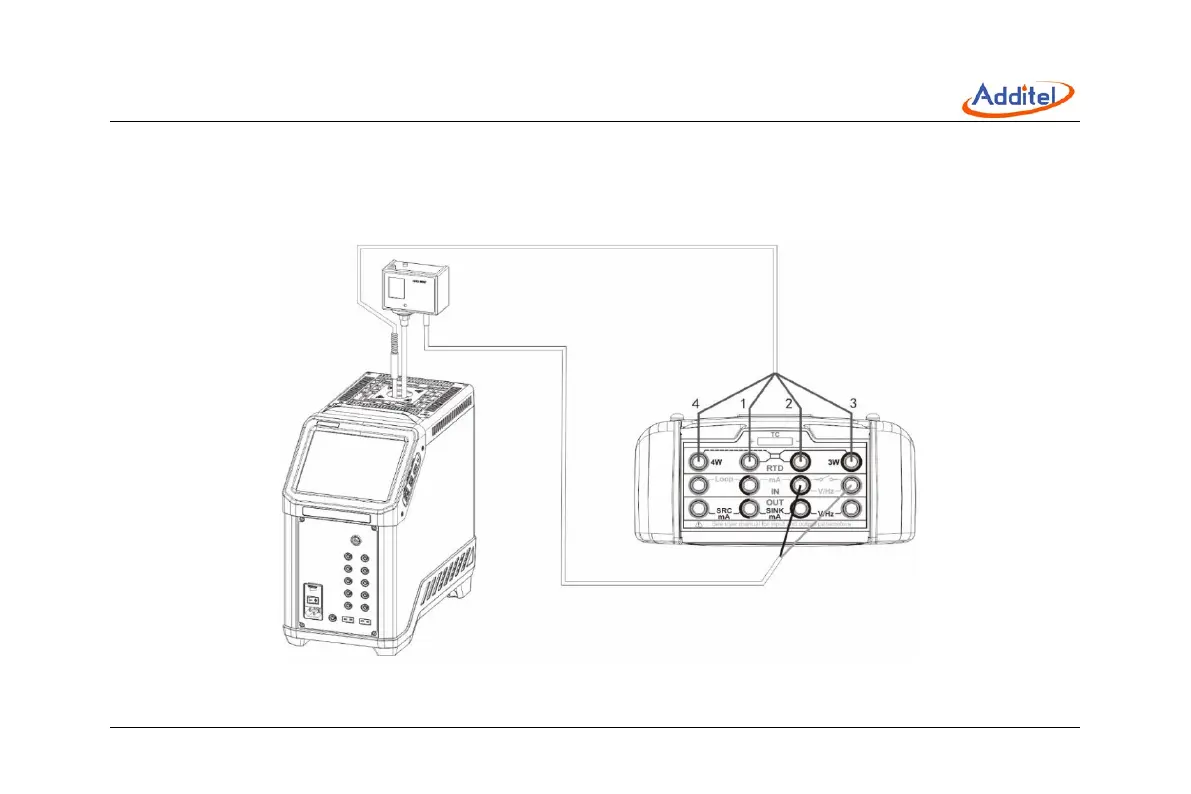

Figure 32 Temperature switch with sensor
