Additel 226Ex - Simulate RTD Output; Figure 24 Simulate RTD Output

56
Table 16 Simulate TC Output Setting
Subject Valid Value Description
Sensor Type TC sensor Select TC sensor
Cold junction type Auto/ Fix Select cold junction type, automatically build in the cold junction for the device
Cold junction value Digital When the cold junction type is fixed, the cold junction value needs to be input
Temp Unit K / °F / °C Select the temperature unit as Kelvin, Fahrenheit or Celsius
Decimal digits 0~0.001 Decimal accuracy of temperature display
3.5.6 Simulate RTD output

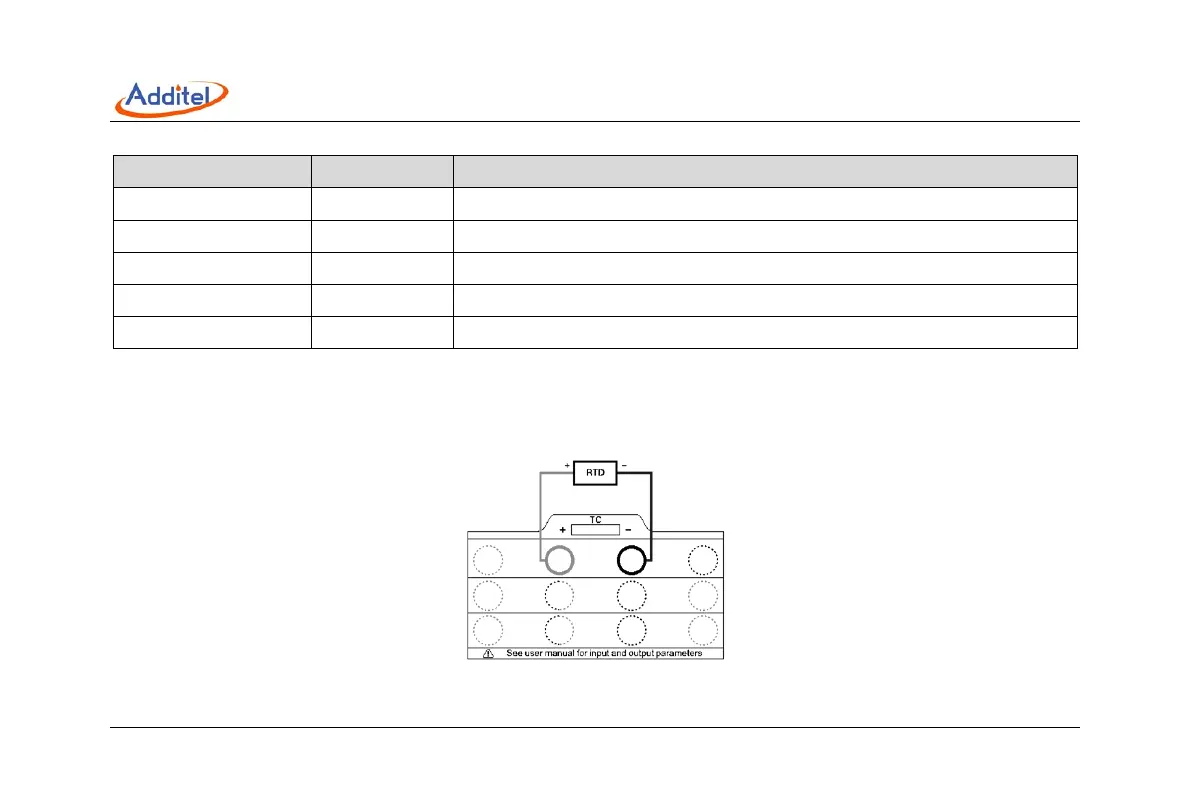

The wiring method of simulate RTD output is shown in Figure 24. After correct wiring as shown in the figure, click the
switching menu of channel 1 and select the RTD output to use the simulate RTD output function.
Figure 24 Simulate RTD output
