3.1.2 Current measurement

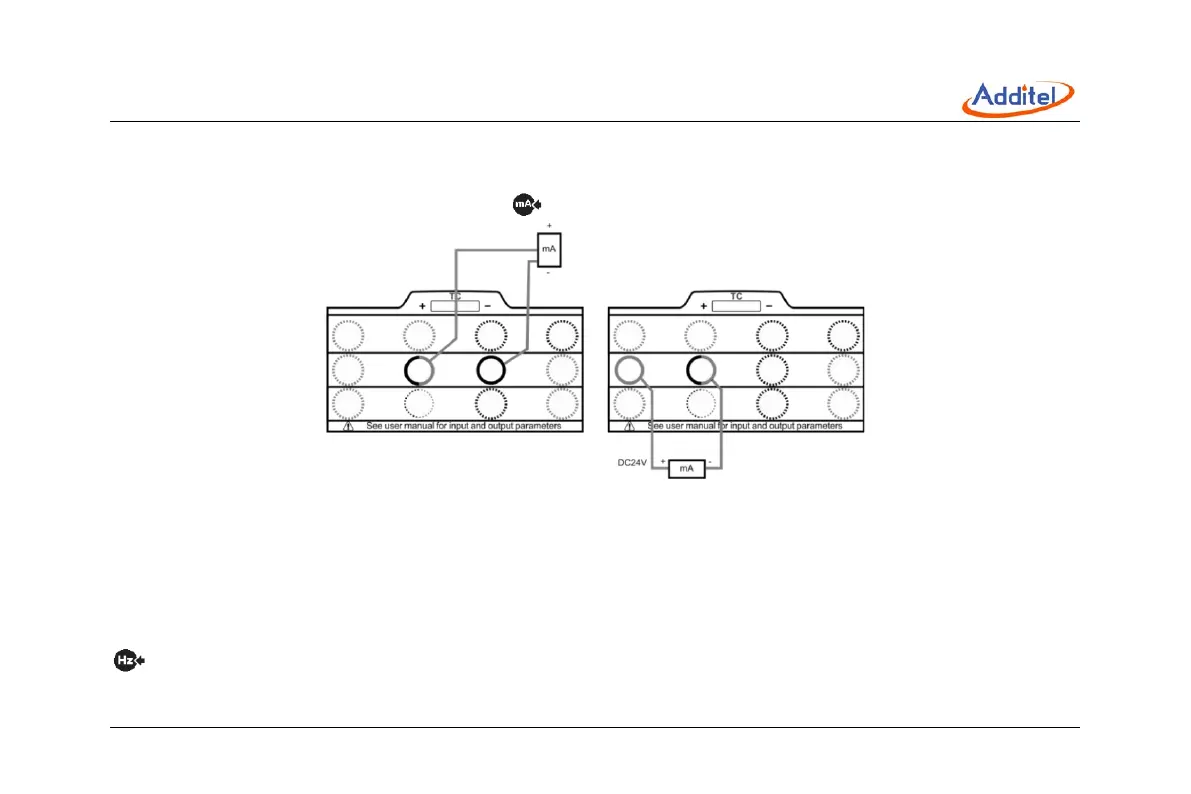

Please connect correctly as shown in the figure (Figure 8 Current measurement). Then switch the measurement signal
of channel 1 to current measurement (-30~30)mA .
Figure 8 Current Measurement
3.1.3 Frequency measurement
The wiring method of the frequency measurement is the same as the voltage measurement. Please connect correctly
as shown in the Figure 7. Then switch the measurement signal of channel 1 to frequency measurement (0.01~50k)Hz
.
