3.1.7 Scaling
The scaling function gives the calibrator the ability to convert electrical measurement signals into other signals. Click
the menu button of the measurement channel, select the scaling menu item in the pop-up menu, and the parameter
configurations related to scaling will be displayed (see Figure 10).

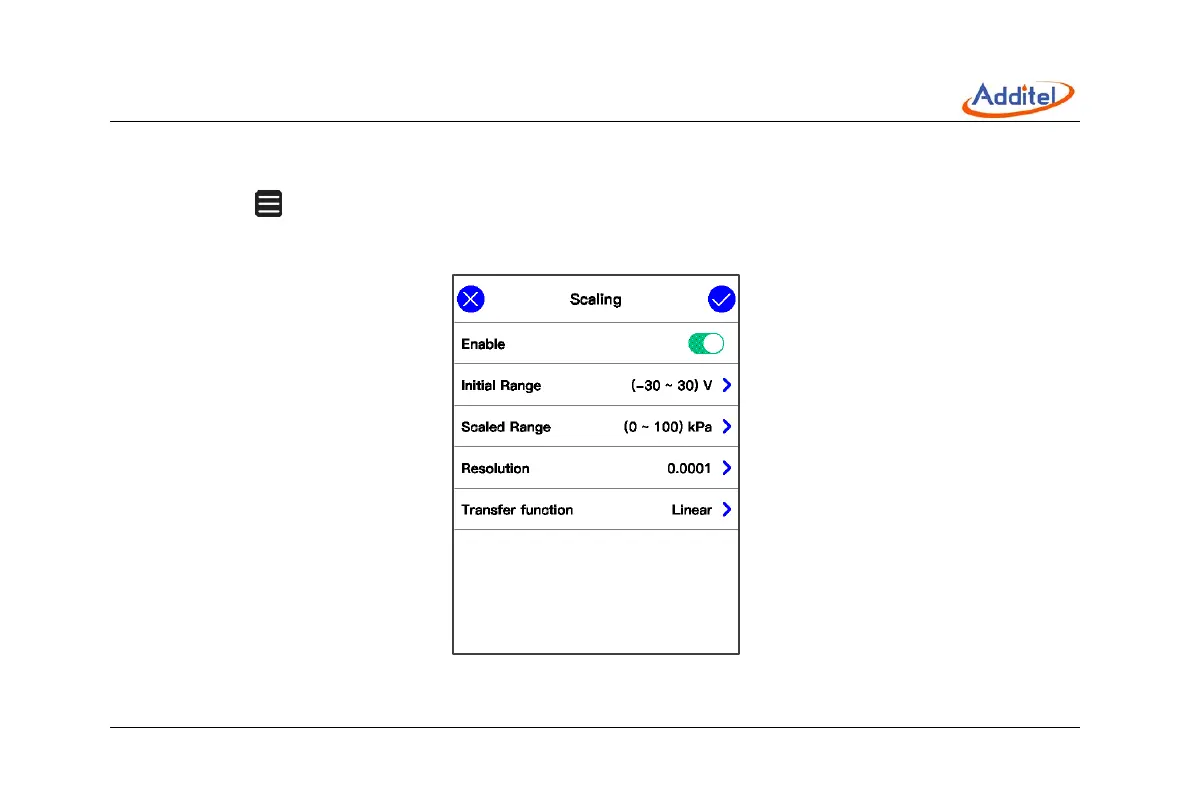

Figure 10 Scaling configurations
