3.5 Output
The calibrator provides a variety of electrical signal output and analog temperature output functions to cope with
various usage scenarios and different devices under test. The output function of the calibrator not only supports manual
setting of set points for signal output, but also provides two automatic output functions: automatic ramp output and
automatic step output, and two convenient manual output functions: manual step output and manual fine-tuning output.
3.5.1 Voltage output
The connection of voltage output is shown in the Figure 21 Voltage, frequency, pulse output. Then click the switching
menu of channel 2 and select the (0~10.5V) .

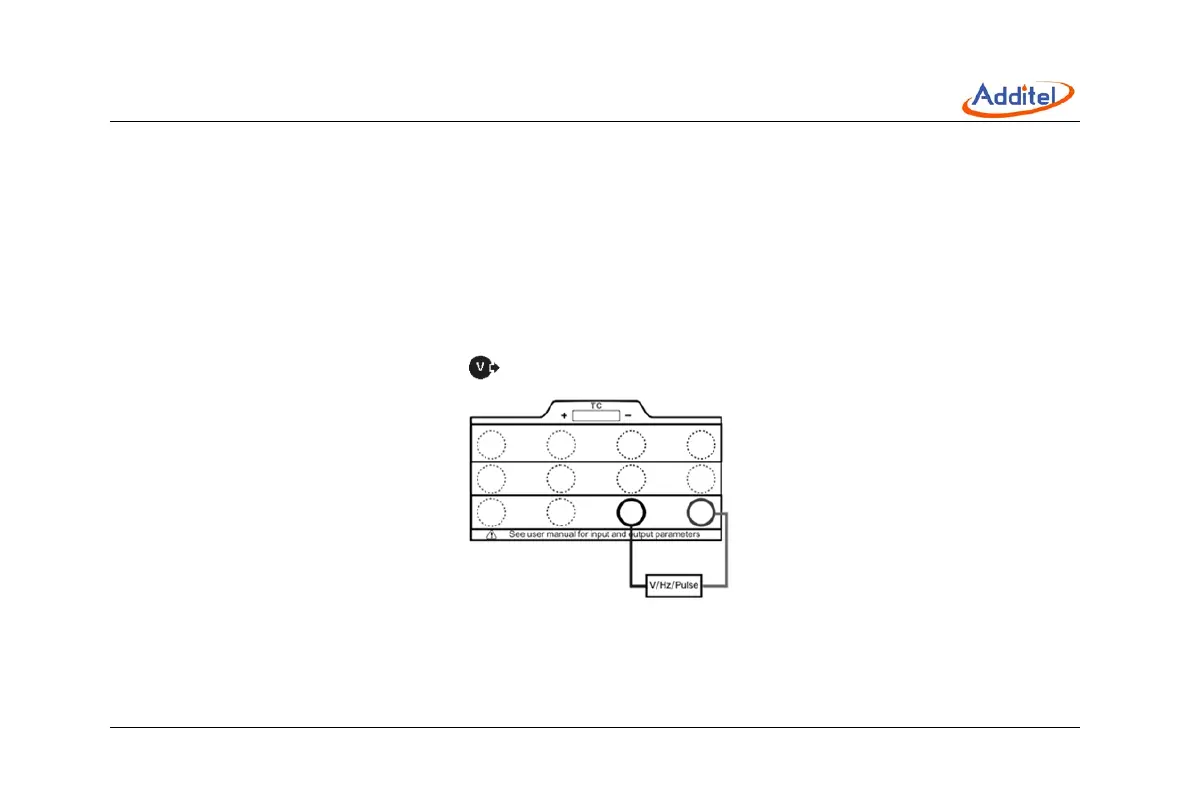

Figure 21 Voltage, frequency, pulse output
