3.1 Electrical Measurement
3.1.1 Voltage measurement

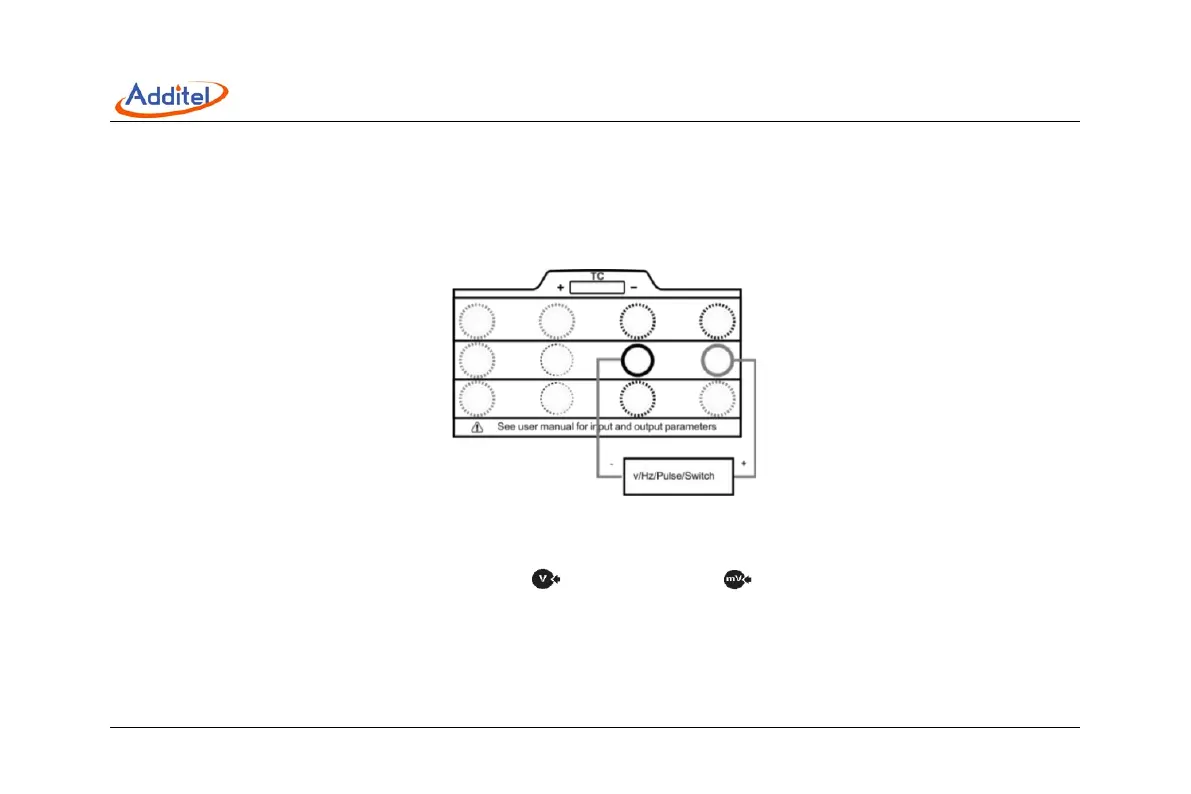

Please connect correctly as shown in the figure (Figure 7 Voltage measurement). Then switch the measurement signal
of channel 1 to voltage measurement.
Figure 7 Voltage/Pulse/Frequency/Switch Measurement
In order to ensure measurement accuracy and adapt to more usage scenarios, two different ranges can be selected
for voltage measurement in this device: (-30~30)V and (-300~300)mV , the user should select the appropriate
measurement item according to the use situation.
