3.5.2 Current output
The connection of voltage output is shown in the Figure 22 Current output. Then click the functions switching menu of
channel 2 and select the (0~25)mA .

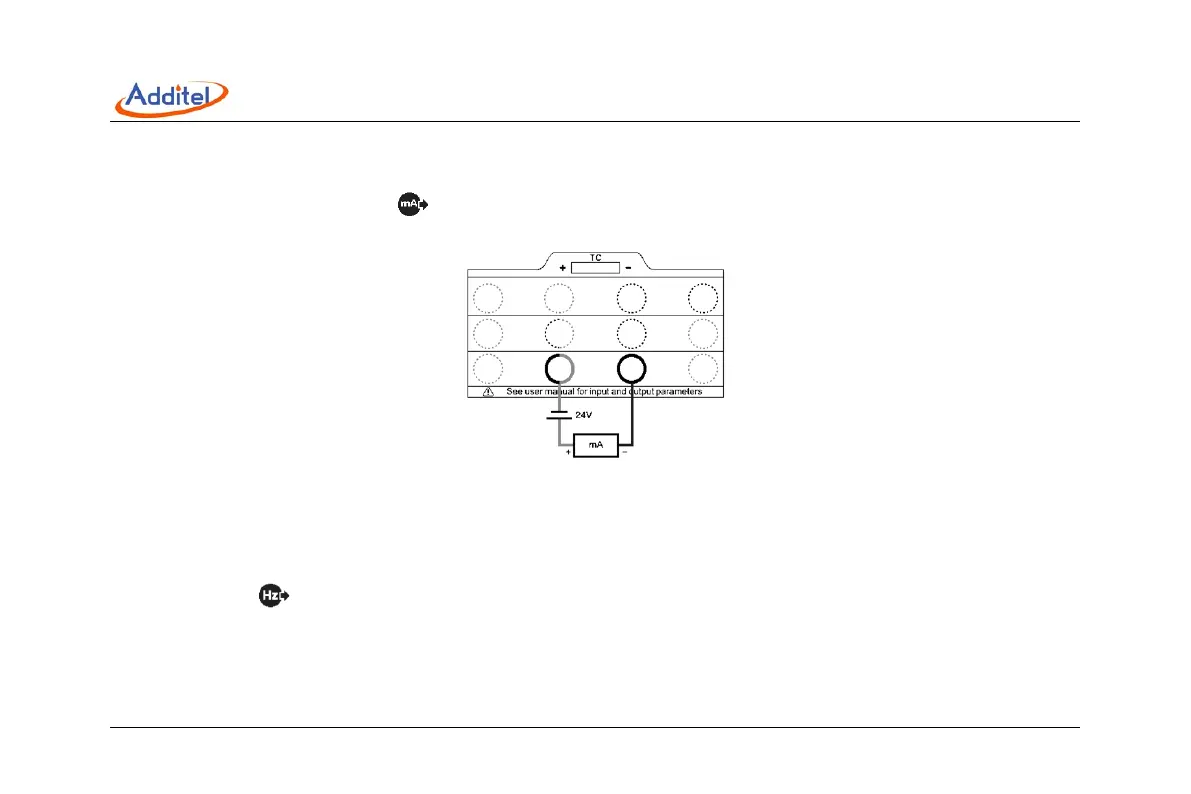

Figure 22 Current output
3.5.3 Frequency output
The connection of frequency output is shown in the Figure 21. Then click the switching menu of channel 2 and select
the (0.01~50k)Hz . The frequency output function provides a setting menu, in which the amplitude of the frequency
output can be set.
3.5.4 Pulse output
The wiring method of using the pulse output function is the same as the voltage output (Figure 21). After correct wiring
