Additel 226Ex - Figure 13 Current Loop Test

43

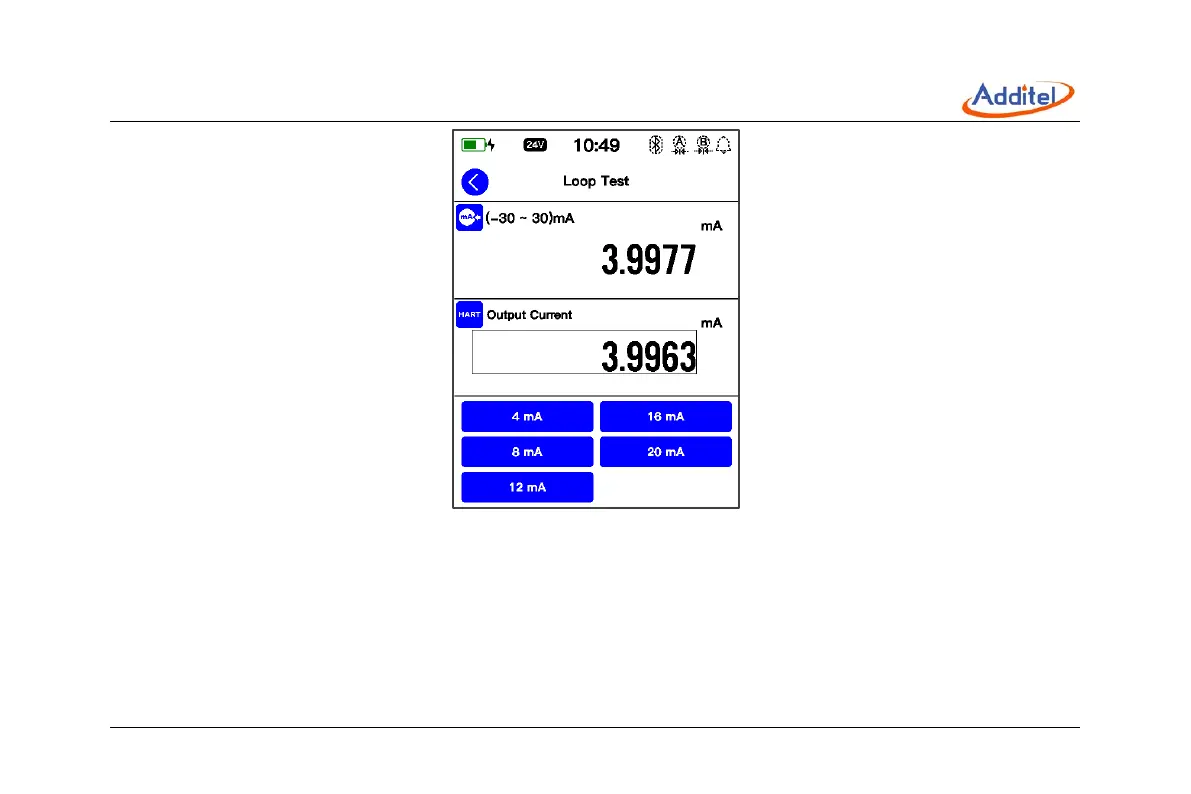

Figure 13 Current loop test
2. Primary variable zeroing
Zero the zero point of the pressure transmitter to correct the zero offset of the transmitter. Under the zeroing mode,
please select the pressure module connected to the device as the standard module. Then the upper channel in the
interface displays the pressure value output by the transmitter, and the lower channel displays the pressure value
measured by the selected standard module of the device.
