6.2.3 Temperature transmitter with sensor
This type of task is for calibrating temperature transmitter with sensor. During calibration, it requires putting the sensor
of the DUT into a temperature source (such as an ADT875/878 dry well or thermostatic bath). At the same time, use a
reference sensor to connect to the TC/RTD measurement ports on the calibrator, as shown in Figure 30.

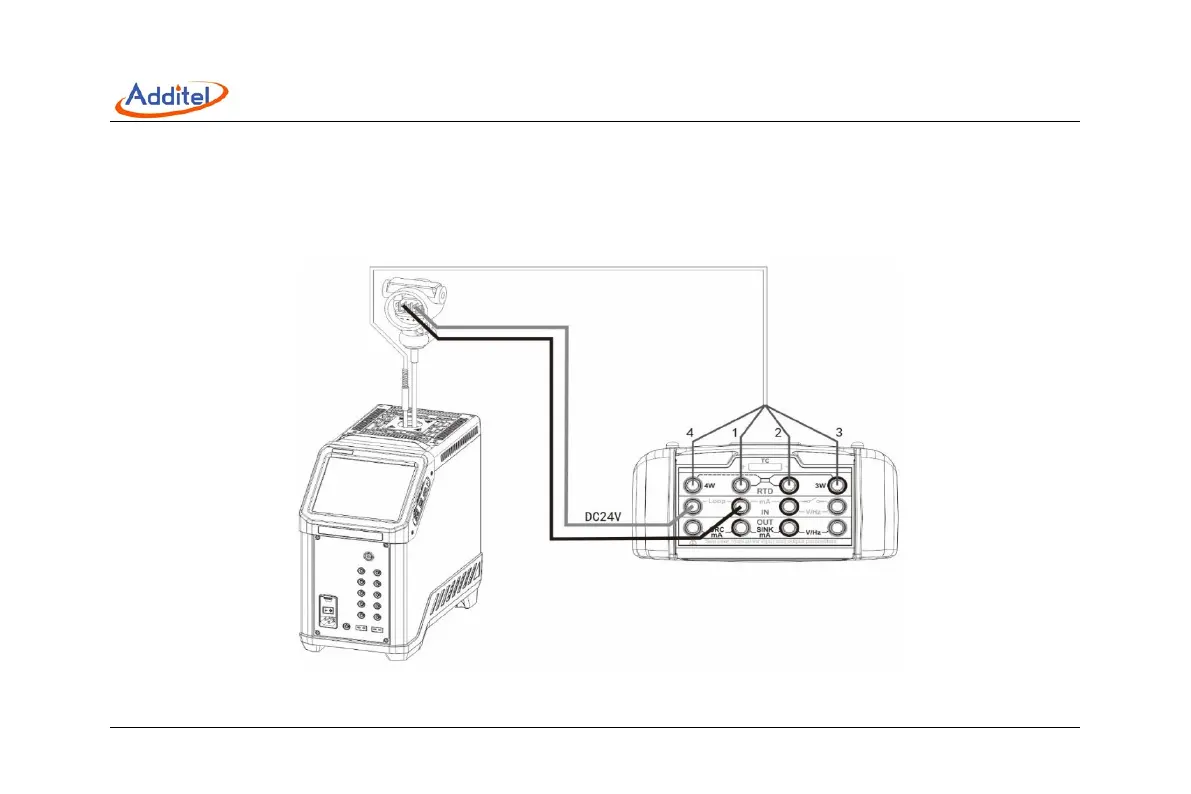

Figure 30 Temperature transmitter with sensor
