Table 9 Scaling configurations
Subject Valid Value Description
Enable/disable Enable/disable Enable or disable the scaling function
Input range Number Range before scaling
Output range Number Range after scaling
Resolution 0~0.000001 The number of decimal places displayed after scaling
Transfer function Linear, square or square root Scaling transfer function
3.2 HART
Click the HART application icon on the main page or switch the measurement channel to the HART measurement in
the main interface of the calibrator to enter the HART communication function. HART communication provides the
search, process quantity selection, setting, diagnosis and testing of the transmitter functions. The correct connection
method for using the HART communication function is shown in the Figure 11 and 12.

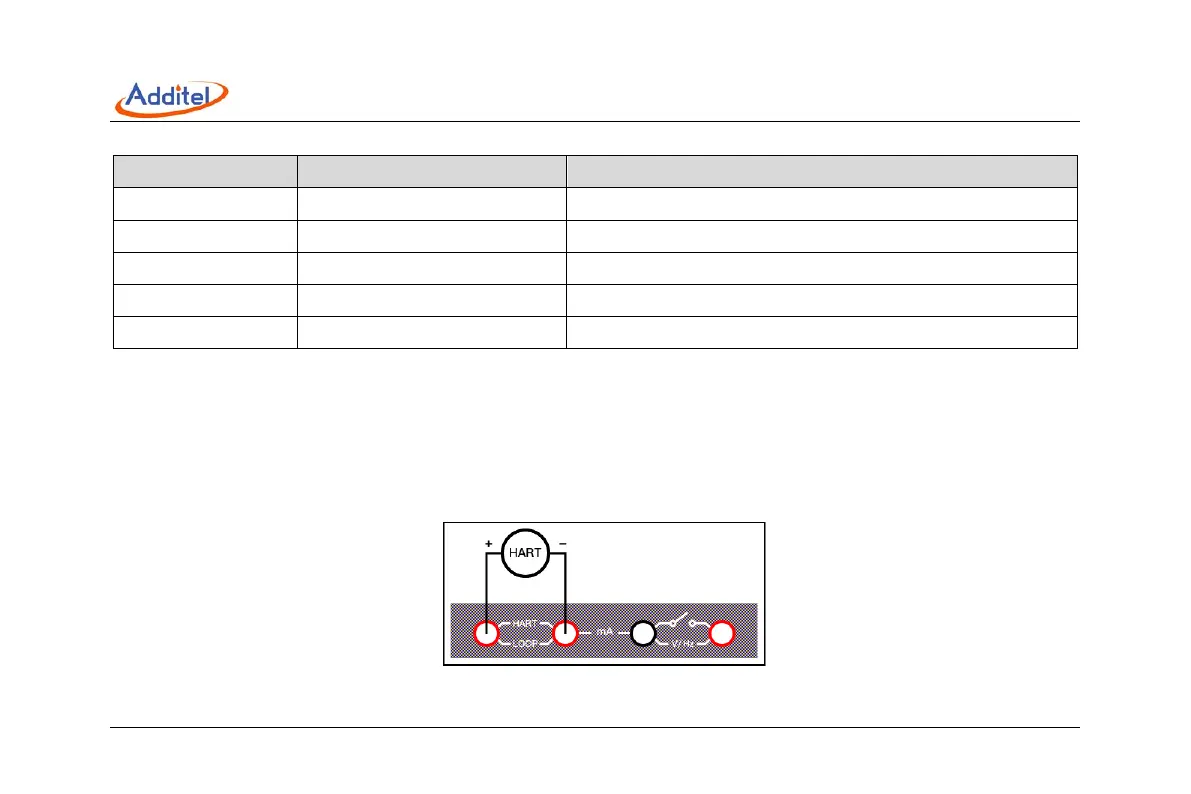

Figure 11 Internal power+ internal resistor
