ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 110 -
11 +24V
Internal 24V+ of the controller (do not connect any circuit)
12 +24V
Internal 24V+ of the controller (do not connect any circuit)
13 GND
Internal 24V+ grounding of the controller
14 IN10 Y axis positive limit (>Y+)
15 IN11 Y axis negative limit (Y-<)
16 IN12 External emergency stop key (STP)
17 IN13 External start key (STA)
18 IN14 External hand control box X – positive control (X-)
19 IN15 External hand control box Y – positive control (Y-)
20 IN16 External hand control box deceleration key (SP-)
21 IN17 External hand control box torch down control key (DOW)
22 IN18 Forward
23 IN19 Backward
24 +24V
Internal 24V+ of the controller (do not connect any circuit)
25 GND
0V

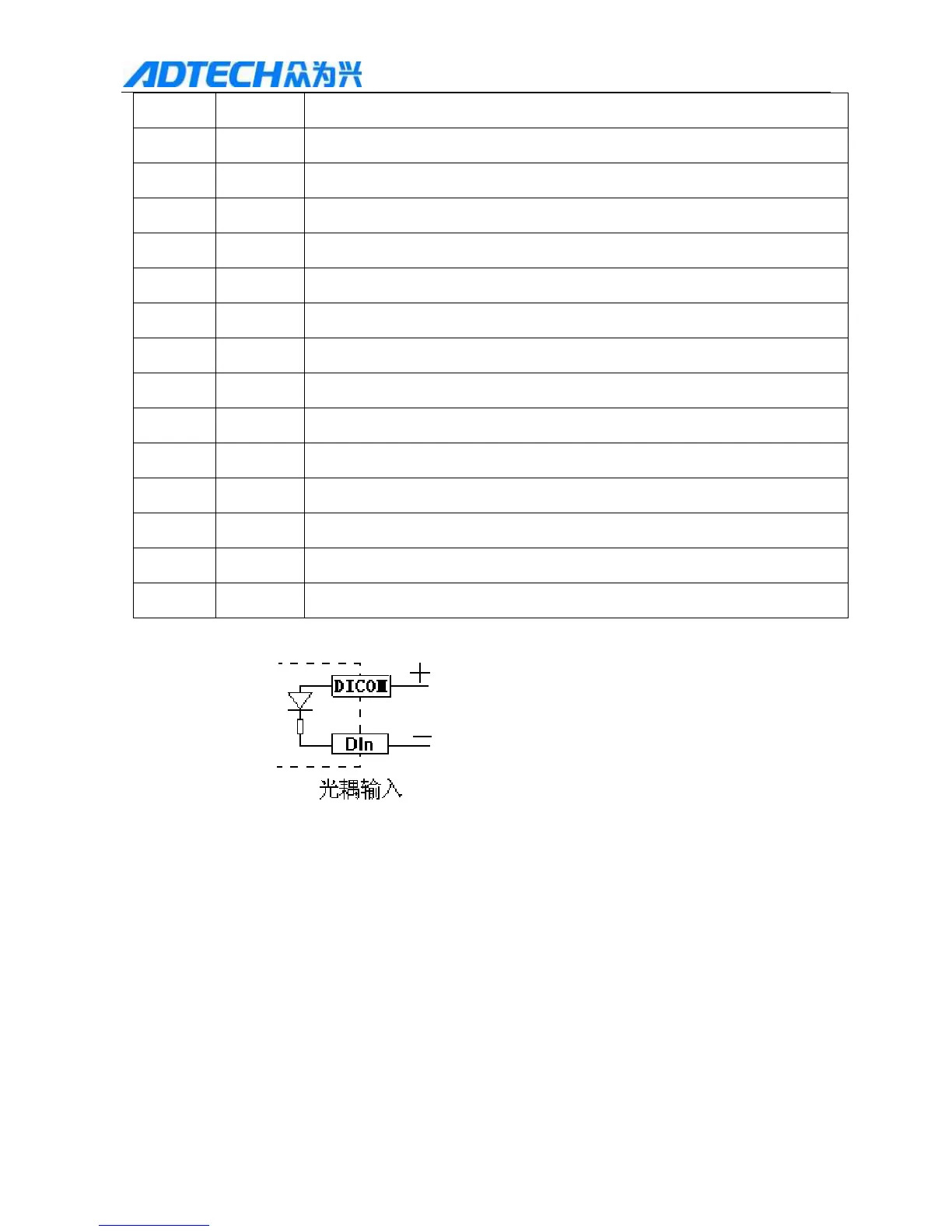

Wiring mode of input signal:
Optical coupling input
DICOM terminal is connected to positive end of internal power supply, and the input signal is connected to
respective terminal.
