ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 111 -

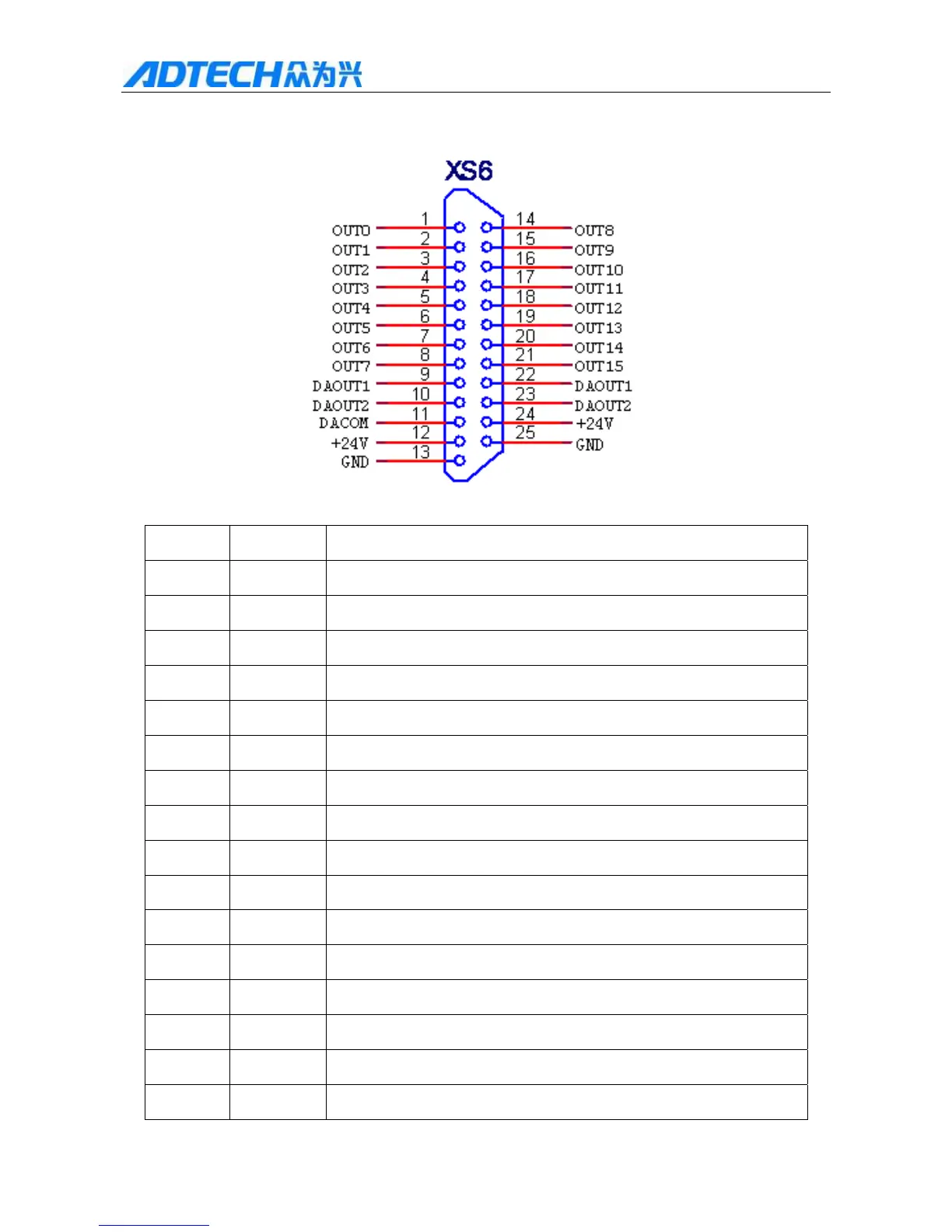

2.2.3 Output control interface——25-port socket (female)
Wire No. Definition Function
1 OUT0 Flame cutting ethyne valve control, M10 (ON), M11 (OFF)
2 OUT1 Torch up control, M14 (ON), M15 (OFF)
3 OUT2 Flame cutting ignition control, M20 (ON), M21 (OFF)
4 OUT3
Plasma height adjustment control, M22 (ON), M23 (OFF)
5 OUT4
Reserved ethyne control, M40 (ON), M41 (OFF)
6 OUT5
Reserved torch up, M28 (ON), M29 (OFF)
7 OUT6
Reserved ignition control, M34 (ON), M35 (OFF)
8 OUT7
Reserved height adjustment control, M38 (ON), M39 (OFF)
9 NC
Null
10 NC
Null
11 NC
Null
12 +24V
Internal 24V+ of the controller (do not connect any circuit)
13 GND
Internal 24V+ grounding of the controller (do not connect any circuit)
14 OUT8
Cutting oxygen/plasma (start arc) control, M12 (ON), M13 (OFF)
15 OUT9
Torch down control, M16 (ON), M17 (OFF)
16 OUT10
Reserved, M18 (ON), M19 (OFF)
