ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 47 -
1.2.5.1.8 Array
Please refer to Chapter II Section 16: Array.
1.2.5.1.9 Restore
In processing and turn interface, press [F6] (Restore) to restore the graphics after array, selecting point and
line to the graphics before being imported.
1.2.6 Returning reference point
In the Auto interface, press [F5] to return the torch to the origin at current manual speed; during automatic
running, press the [Stop] key first and then press [F5] when the system is stable.
1.2.7 Breaking point
The main functions of breaking point follow:
1) When the power resumes from failure, search for the coordinates before power failure
2) Set a point memory in current track to replace torch nozzle
3) Set a point memory in current track for displacing and perforating

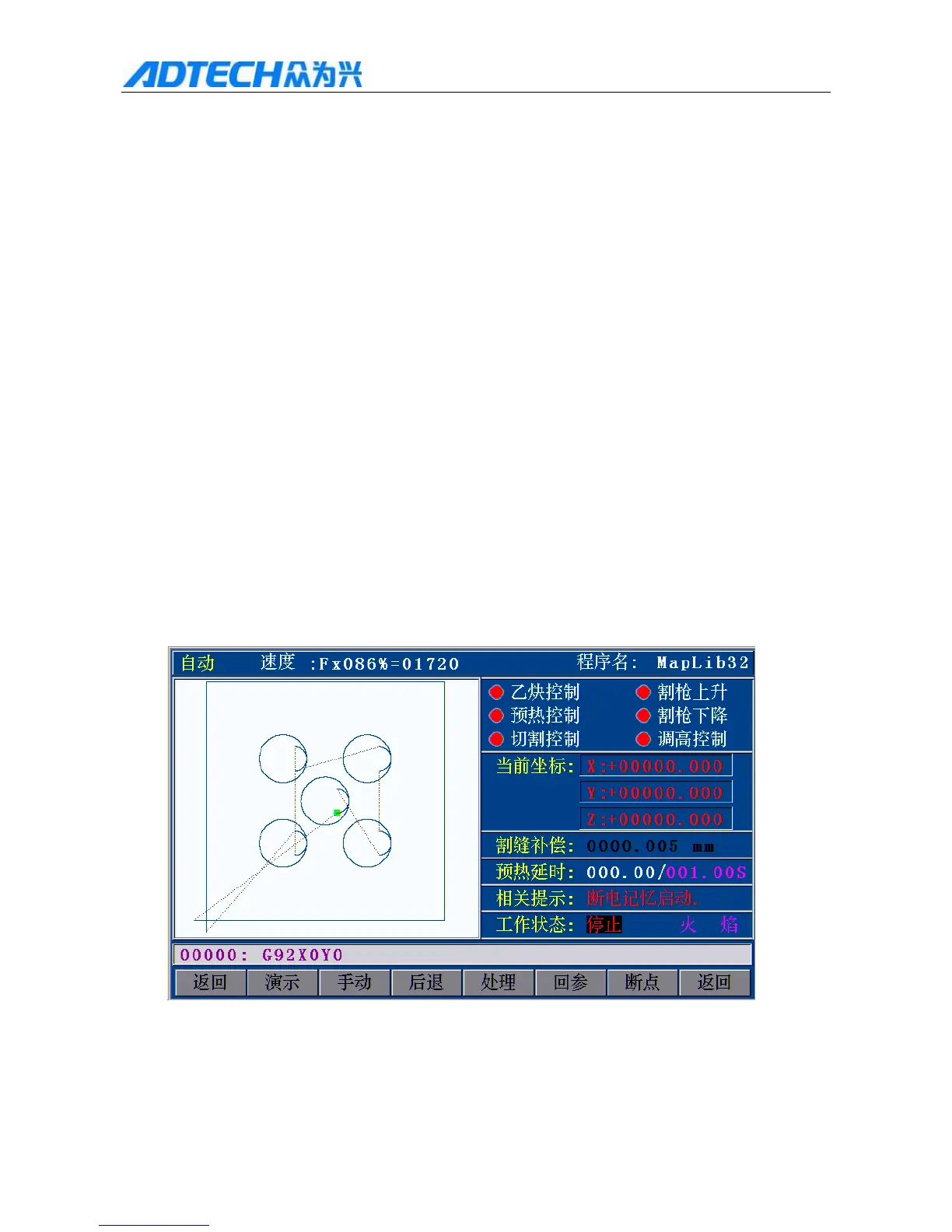

Manual / Speed: / Program name:
Ethyne control / Torch up
Preheating control / Torch down
Cutting Control / Height control
